ZRC Galvilite® Galvanizing Repair Compound
ZRC Galvilite® Galvanizing Repair Compound - 12 oz Aerosol Cans - Image 2

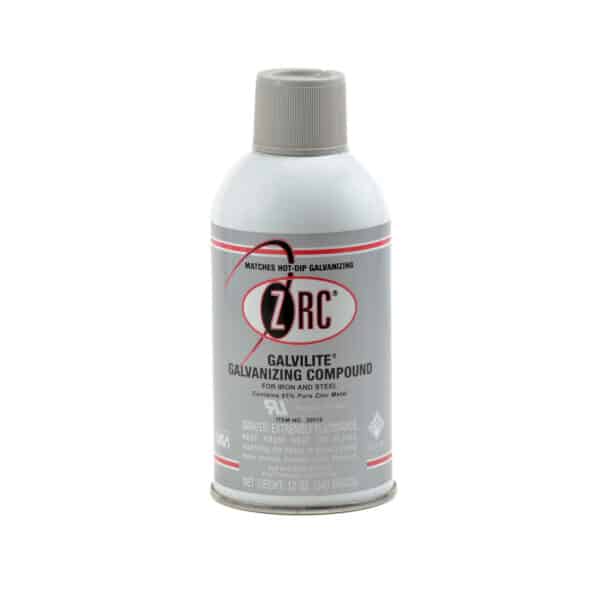

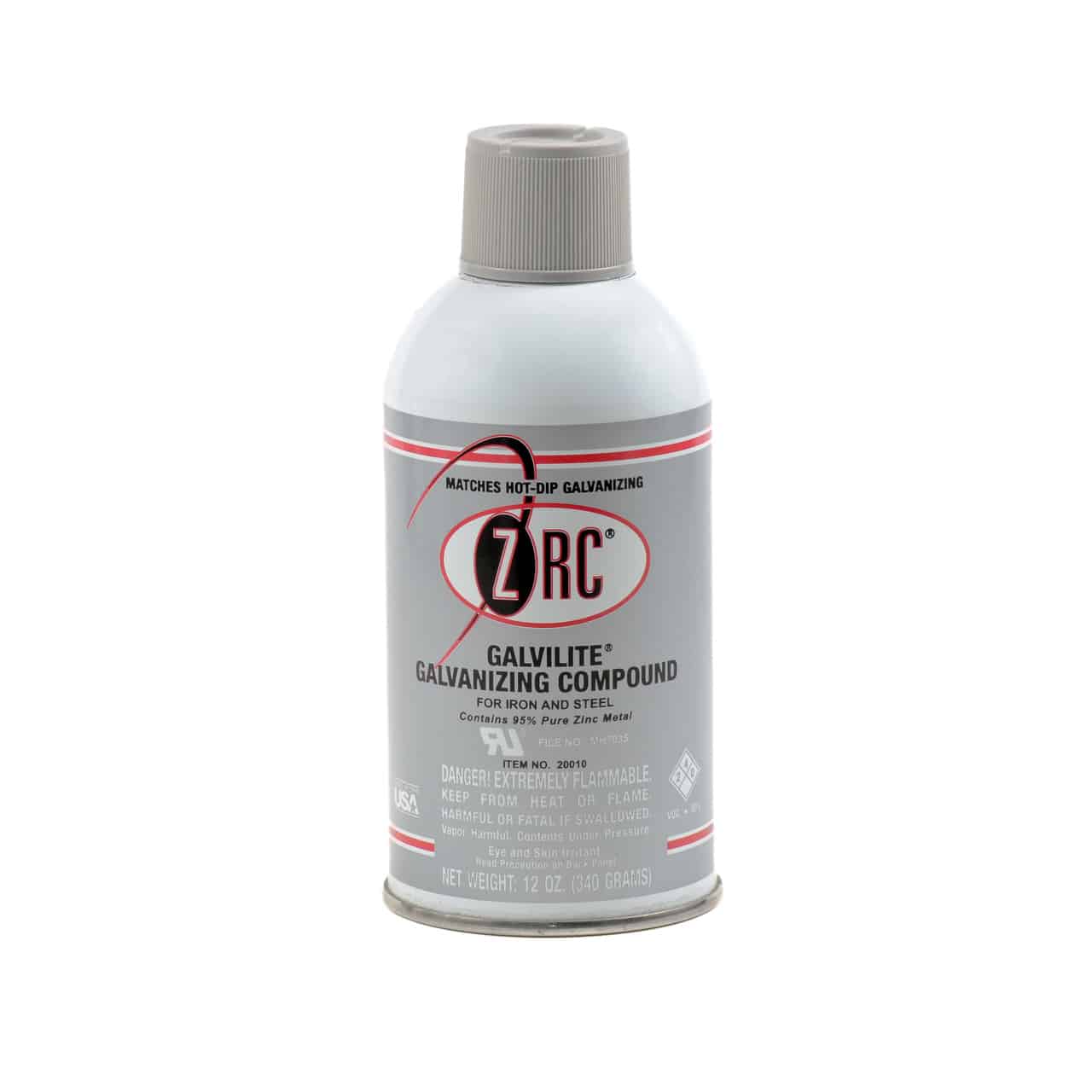

ZRC Galvilite® Galvanizing Repair Compound – 12 oz Aerosol Cans

Designed specifically for field and shop repair of hot-dip galvanization, ZRC Galvilite® exceeds galvanizing repair specifications like ASTM Des. A 780, SSPC-Paint 20, and DOD-P-21035A.

ZRC Galvilite® Galvanizing Repair Compound is a high-quality cold galvanizing compound based on a trade secret organic binder which affords true galvanic anti-corrosion protection to metals. Galvilite® is designed specifically for field and shop repair of hot-dip galvanizing. It is manufactured with the highest purity ASTM D520 Type III zinc dust. It meets VOC standards in all 50 states, exceeds galvanizing repair specifications, and has multiple application formats. More Info

Selling Unit:
Case
Part #:
ZRC-20010
Min. Order Quantity:
1
Min. Order Increment:
1
SKU:
ZRC20010

ZRC Galvilite® Galvanizing Repair Compound – 12 oz Aerosol Cans is available for purchase in increments of 1

24 each per case ($17.19 per piece)

Price:

$412.50

Product Description

Advantages of ZRC Galvilite® Galvanizing Repair Compound

The dried film of Gavilite is 95% metallic zinc. Because of the uniqueness of the formulation, ZRC Galvilite® Galvanizing Repair Compound is the only coating of its type to be recognized under the Component Program of Underwriter’s Laboratories, Inc. Galvilite is widely used without topcoat in place of hot-dip galvanizing. It’s specially formulated for:

  • Hot-Dip Galvanizing Repair & Regalvanizing: It’s a flexible option for repair of worn hot-dip galvanized materials.
  • Galvalume® and Zinc Metallizing: Galvilite can be used for Galvalume® and zinc metalizing projects.
  • Weldments Repair: This original compound can be used to repair weldments.
  • Inorganic Zinc Coatings Repair: ZRC is also effective for inorganic zinc coatings repair.
  • Long-Term Protection: It’s proven to be effective long-term protection for structural steel, water and waste facilities, power plants, transmission towers and antennae, steel decking and bridges, and numerous OEM uses.

Flexible Application Formats

Unlike hot-dip galvanizing, ZRC Galvilite® Galvanizing Repair Compound is portable, flexible protection that can be applied in a variety of formats. It’s meant to be applied to properly prepared carbon steel, cast iron, hot-dip galvanized, and aluminum surfaces.

  • Brush, Roller, and Aerosol
    • Apply as received in the container. For brush application, only 100% Natural Chinese Bristle brushes are recommended for ZRC Galvilite® Galvanizing Repair Compound. For roller application, rollers with a 3/8” nap, made of mohair or lambs wool (sheepskin) are recommended.
  • Spray (Low Pressure Compressor)
    • Atomized Air Pressure 50 Lbs (1.3 kg/cm²)
    • Fluid Pressure:15 to 20 Lbs (0.4-0.6 kg/cm²)
    • Orifice of Tip: 0.080 inches (0.20 cm)
    • Viscosity Reduction: 4:1 Mineral spirits -OR- 16:1 Xylene
  • Spray (Airless)
    • Recommended Procedure: Connect hose directly to pump ensuring a hose length of 50 ft. max. Use the least pressure possible. Start at 1500 lbs. (680 kg) and increase as required for good spraying.
    • Pump: 30:1 Ratio
    • Hose: 1/2″ (1.3 cm) (I.D.) Airless Type
    • Orifice of Tip: 60° – .026 in. (0.07 cm)
    • Type of Tip: Tungsten carbide, reversing
    • Filter Screens Complete removal is recommended. However, if screens are employed, use no less than 30 mesh.
    • Viscosity: No reduction required.
