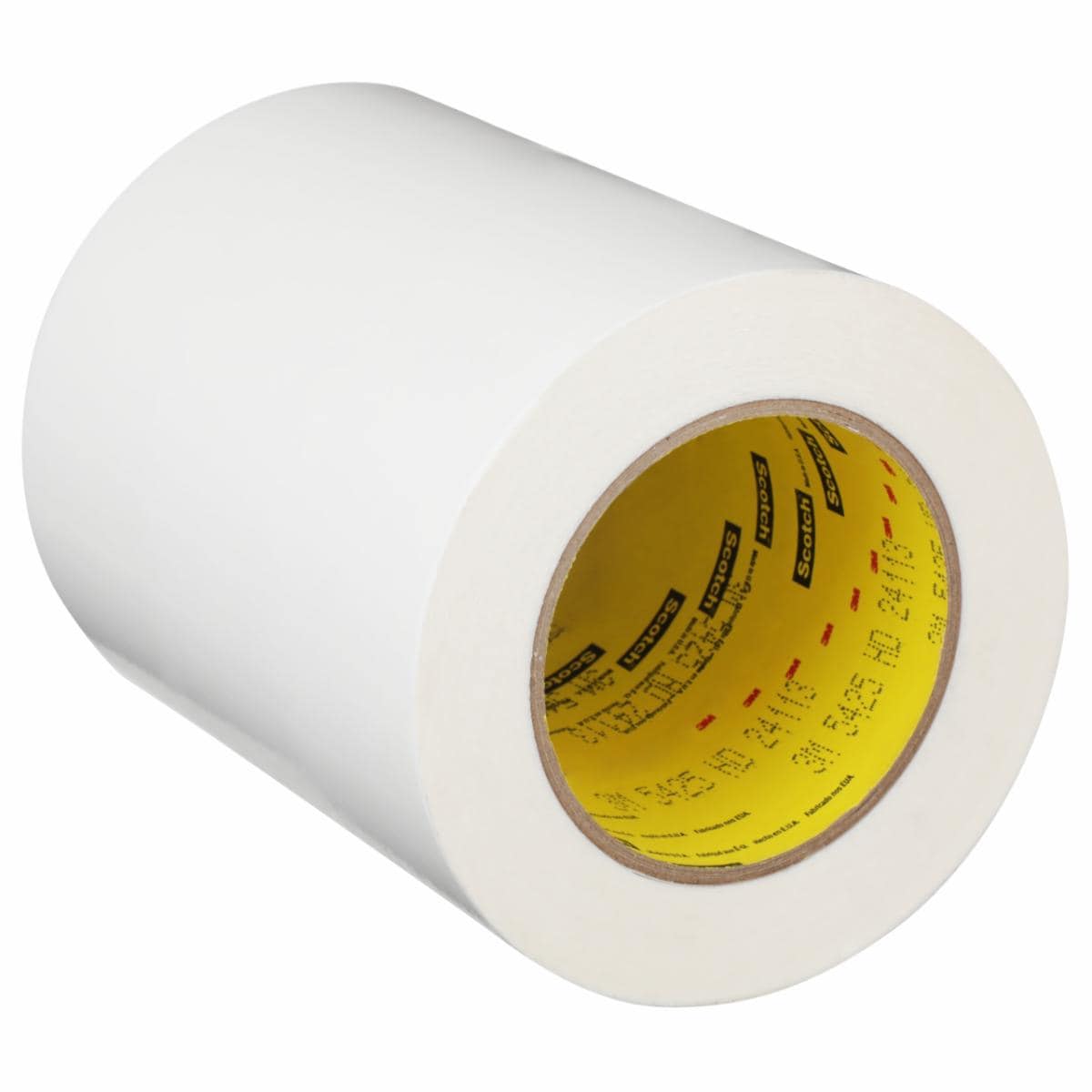

Used to protect surfaces from abrasion, 3M UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a “slip plane” effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.
An Effective Solution for Many Noise and Vibration Problems
3M™ UHMW-PE Film Tape 5425 is often used in general industrial applications to help control squeaks and rattles due to vibration or wear of metal and plastic materials. This UHMW-PE (ultra-high molecular weight polyethylene) film tape provides excellent chemical resistance and abrasion resistance that helps ensure a long wear life. 3M™ UHMW-PE Film Tape 5425 is mounted on a liner, making it easy to die-cut to meet the demands of specific applications. It is ideal for applications requiring increased chemical resistance and a low coefficient of friction and the movement of parts and/or materials. This slick surface tape is primarily used in aerospace, automotive, printing and MRO industries.
Recommended Applications
The Science Behind The Tape
The effectiveness of 3M™ UHMW-PE Film Tape 5421 lies in its Ultra-High Molecular Weight polyethylene (UHMW-PE) backing. UHMW-PE is a thermoplastic that has a unique combination of properties, such as exceptional hardness and low surface energy. The ultra-high molecular weight of this tape significantly reduces friction to create an effective solution for anti-stick and easy-release requirements. The abrasion resistance of UHMW-PE is greater than PTFE and increases as the molecular weight increases.
The extraordinary durability and versatility of UHMW-PE is used by designers and engineers in many industries worldwide. UHMW-PE based products offer a host of exceptional attributes that include high abrasion resistance, low coefficient of friction and one of the highest impact strength ratings of any thermoplastic. These attributes make them ideal for tough impact wear or sliding applications. The low coefficient of friction characteristic is surpassed only by PTFE; however, UHMW-PE tape has superior abrasion resistance. The exceptional science and engineering of products provide long-lasting performance and successful solutions.
For more information about UHMW Film Tape 5425, visit the official 3M website.
| Pieces Per Case | 8 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100226808 |
| Part Number | 3MABR-5425 |
| UPC | 00638060406366 |
| Weight | 4.706 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Backing (Carrier) Thickness | 0.08 mm, 3 mil |
| Backing Thickness | 0.08 mm, 3 mil |
| Height | 0.1 mm, 4.5 mil |
| Length | 32.918 m, 36 yd |
| Thickness | 0.13 mm, 5.1 mil |
| Width | 1 in, 2.54 mm |
| Tensile Strength | 44.4 N/100mm, 45 lb/in |
| Adhesion Strength (Imperial) | 30 oz/in |
| Adhesion Strength (metric) | 33 N/100mm |
| Adhesive Type | Acrylic |
| Application | Vibration Damping |
| Backing (Carrier) Material | Polyethylene |
| Backing Material | Ultra-high Molecular Weight Polyethylene |
| Elongation at Break | 345% |
| Industries | Aerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military & Government, Specialty Vehicles, Transportation |
| Product Color | Transparent |
| Product Form | Roll |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759 |
| Dimensions | 6.8 × 6.8 × 10.8 in |
