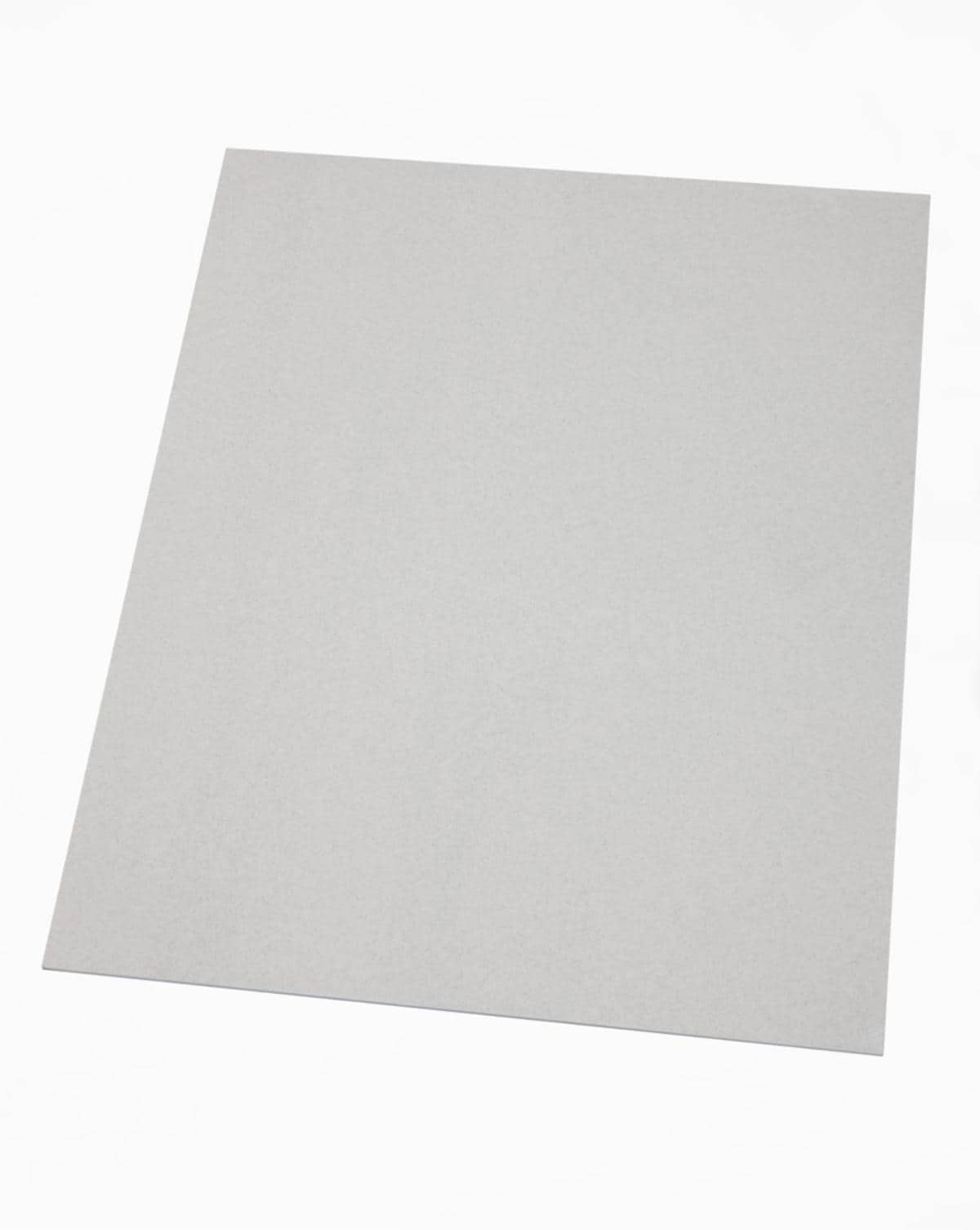

3M Thermally Conductive Acrylic Interface Pad 5590H is a moderately conformable and medium-soft pad with high thermal conductivity of 2.8 W/m-K (3M test method). This pad consists of a slightly tacky acrylic elastomeric sheet filled with thermally conductive ceramic particles. It is designed to transfer heat from heat generating components to heat sinks and cooling devices, improving device reliability and extending the component’s life.
3M Thermally Conductive Acrylic Interface Pad 5590H has a medium-soft pad that conforms to uneven substrates, providing excellent wettability to fill gaps for improved thermal performance.The thin, firm, low-tack layer provides easy handling for pre-assembly and die-cutting. This pad provides robust thermal management for applications in a variety of market segments, such as consumer electronics, automotive, LED lighting, medical devices, communication infrastructure, and aerospace & defense.
The family of 3M Thermally Conductive Acrylic Interface Pads provide low-outgassing and high-performance solutions compared to silicone. These acrylic pads have no siloxane VOC or oil bleeding, which are associated with silicone products and can often cause device failure. They are lightweight, making them ideal for applications with finer spacing requirements and a small footprint. 3M Thermally Conductive Acrylic Interface Pads have good electrical insulation properties to protect against electrical interference and device breakdown.
Recommended Applications:
Heat transfer between PCB and heat sink
Decrease of compression stress to electronic parts by thermal pad softness
Gap filling in electronic devices
Chip on film (COF) heat dissipation
Power electronic component thermal management
Examples:
LED displays
Electric vehicle (EV) batteries
Wireless charging units
Satellite navigation
Sensors
Process control equipment
Test & measurement devices
For more information about Thermally Conductive Acrylic Interface Pad 5589H-1.0, visit the official 3M website.
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
| Pieces Per Case | 1 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100204965 |
| Part Number | 3MABR-5589H |
| UPC | 04549395884056 |
| Per Case | 1 |
| Weight | 22.7 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Length | 20 m, 21.87 yd |
| Width | 240 mm, 9.45 in |
| Adhesive Type | Non-adhesive |
| Application | Thermal Management, Electrical Insulation, Heat Transfer |
| Base Material | Acrylic |
| Dielectric Strength | 12 kV/mm |
| Product Color | Light Gray, White |
| Product Usage | COF Chips, Electronic Control Units, EV Batteries, Heat Sinks, Integrated Circuit Chips, LED Lighting Systems |
| Specifications Met | UL 94 V-0 |
| Thermal Conductivity (Z Axis) | 2.8 W/m-K |
| Units per Case | 1 Roll |
| Dimensions | 10.2 × 10.2 × 11.4 in |
