3M™ Sheet and Screen Label Material 7950, Clear Polyester, 508 mm x 686 mm, 100 Sheet/Case

Sheet and Screen Label Material 7950

• 3M adhesive 300 bonds well to a wide variety of substrates including metals, high surface energy (HSE) plastics and low surface energy (LSE) plastics.
• Facestocks (polyester and vinyl) and adhesives offer heat tolerance, clarity, and UV resistance
• It is ideal for applications requiring high initial adhesion especially to LSE plastic surfaces.
• Liner provides easy sheet processing and is designed for layflat.
• The backside of the liner is not printable.
• UL recognized (File MH11410) and CSA accepted (File 99316). See the UL and CSA listings for details.
• Variable information can be added by the end-user as the material is thermal transfer printable.

#mainTabInterface.infoTable{width:100%;} #mainTabInterface.infoTable td{padding:0 5px 0 5px;} table.sheet_Screen_Table{ width: 100%; border-collapse: collapse; } table.sheet_Screen_Table th,table.sheet_Screen_Table td{ padding: 10px; border:1px solid #000000; vertical-align: middle; text-align: center; } table.sheet_Screen_Table th{background-color: #FFAC2D; vertical-align: top; text-align: left;} table.sheet_Screen_Table td.text-left{ text-align: left; }

When labels come in contact with harsh chemicals, high temperatures, or otherwise rough conditions, 3M offer a variety of 3M™ Sheet and Screen Label Materials to meet the demands of the job. The overlaminate delivers excellent dimensional stability and optimal clarity while improving moisture, tear, cracking and abrasion resistance.

Applications

• Extended life outdoor label applications
• Nameplates and product ID labels
• Rating plates
• Property identification and asset labeling

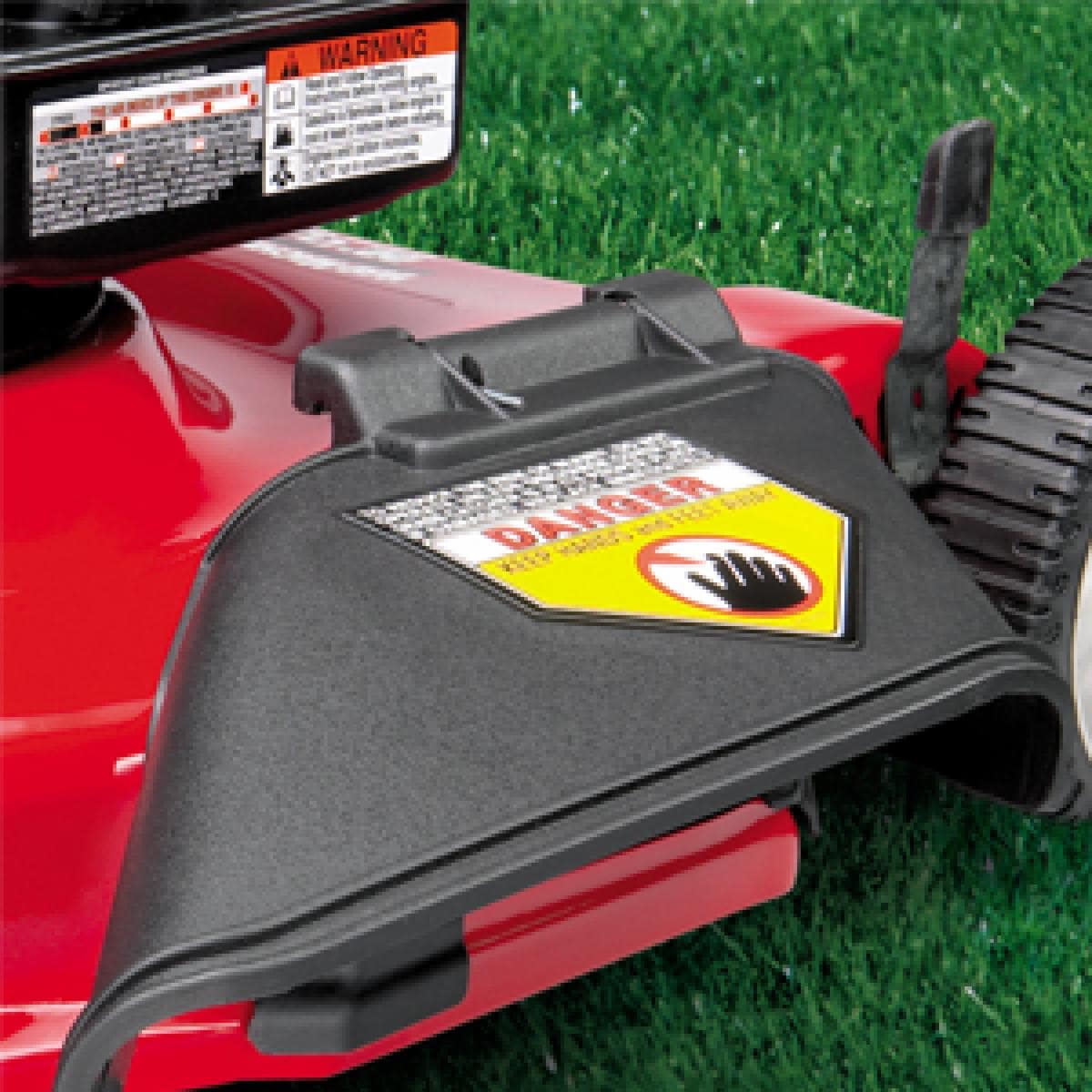

• Caution, warning, instruction, and service labels for durable goods, equipment/machinery including lawn and garden

Learn about Durable Label Materials with Structured Adhesive (PDF, 12.47 Mb)

This product includes a 90# liner for lay flat performance. Some constructions are the same facestock and adhesive as other products. The sheet and screen label materials come in two facestocks — polyester and vinyl. The polyester delivers high heat tolerance, optimal clarity and high tensile strength while the vinyl offers good UV resistance and excellent conformability.





About 3M Adhesives for Sheet and Screen Label Materials
3M™ Sheet and Screen Label Materials feature a range of the specially-formulated adhesives for just the right balance of adhesion and removability. Adhesives include:









• 3M™ Adhesive 350 is a modified acrylic adhesive ideal for applications requiring high shear strength even on low surface energy materials, powder coatings or slightly oily metals.
• 3M™ High Performance Permanent Tackified Acrylic Adhesive P1400 is formulated for use in demanding environments. This adhesive offers good UV resistance and excellent adhesion to a wide variety of substrates, including polyolefins.
• 3M™ High Stability Acrylic Adhesive 500 applies to the vinyl label stocks, and removes cleanly from most surfaces up to one year after application. It's ideal for outdoor die-cut masks.
• 3M™ R3500 Removable Adhesive (PDF, 10.46 Kb) is multi-repositionable for use on smooth surfaces such as glass, metal, and plastic (including polystyrene). It provides good initial tack and long-term adhesion and removes without residue.
• 3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system which delivers a consistently strong bond across a range of temperatures, up to 250°F/121°C.
• 3M™ Adhesive 200MP provides outstanding adhesion to metal and high surface energy plastics. This adhesive provides some initial repositionability for placement accuracy when bonding to plastics. It also performs well after exposure to humidity and hot/cold cycles.

3M™ Durable Label Materials with Structured Adhesive







Product Adhesive (mils) Facestock (mils) Liner Print Method Adhesion* Conformability* Environmental Resistance* Metal HSE LSE Chemical Moisture UV Temp 3M™ Sheet and Screen Label Material 7051SA 350 (1.1) Extended Life White Vinyl (3.8) 90# PCK** Flexo, Screen Printable 9 10 10 10 4 7 7 -20°F to 140°F (-28°C to 60°C) 3M™ Sheet and Screen Label Material 7220SA 350 (1.1) White Polyester TC (2.0) 90# PCK** Flexo, Screen Printable 9 10 10 2 9 9 8 -40°F to 302°F (-40°C to -150°C) 3M™ Sheet and Screen Label Material 7214SA 350 (1.1) Brushed Silver Polyester TC (2.0) 90# PCK** Flexo, Screen Printable 9 10 10 2 9 9 8 -40°F to 302°F (-40°C

to -150°C) 3M™ Sheet and Screen Label Material 7215SA 350 (1.1) Bright Silver Polyester TC (2.0) 90# PCK** Flexo, Screen Printable 9 10 10 2 9 9 8 -40°F to 302°F (-40°C to -150°C)

Bringing Better Ideas to the Surface through Science
3M is the premier durable label solution provider globally in the Industry today. 3M materials and services will enable you and your customers to present the best images, products, and quality as 3M solve marketplace solutions from design to production. 3M do this by partnering with industry leaders to deliver the best possible technology for innovative solutions regardless of your print method, substrates, and ink systems.

Learn more about 3M facestock, adhesive and liner combinations (PDF, 12.39 Mb)













For more information about Sheet and Screen Label Material 7950, visit the official 3M website.
