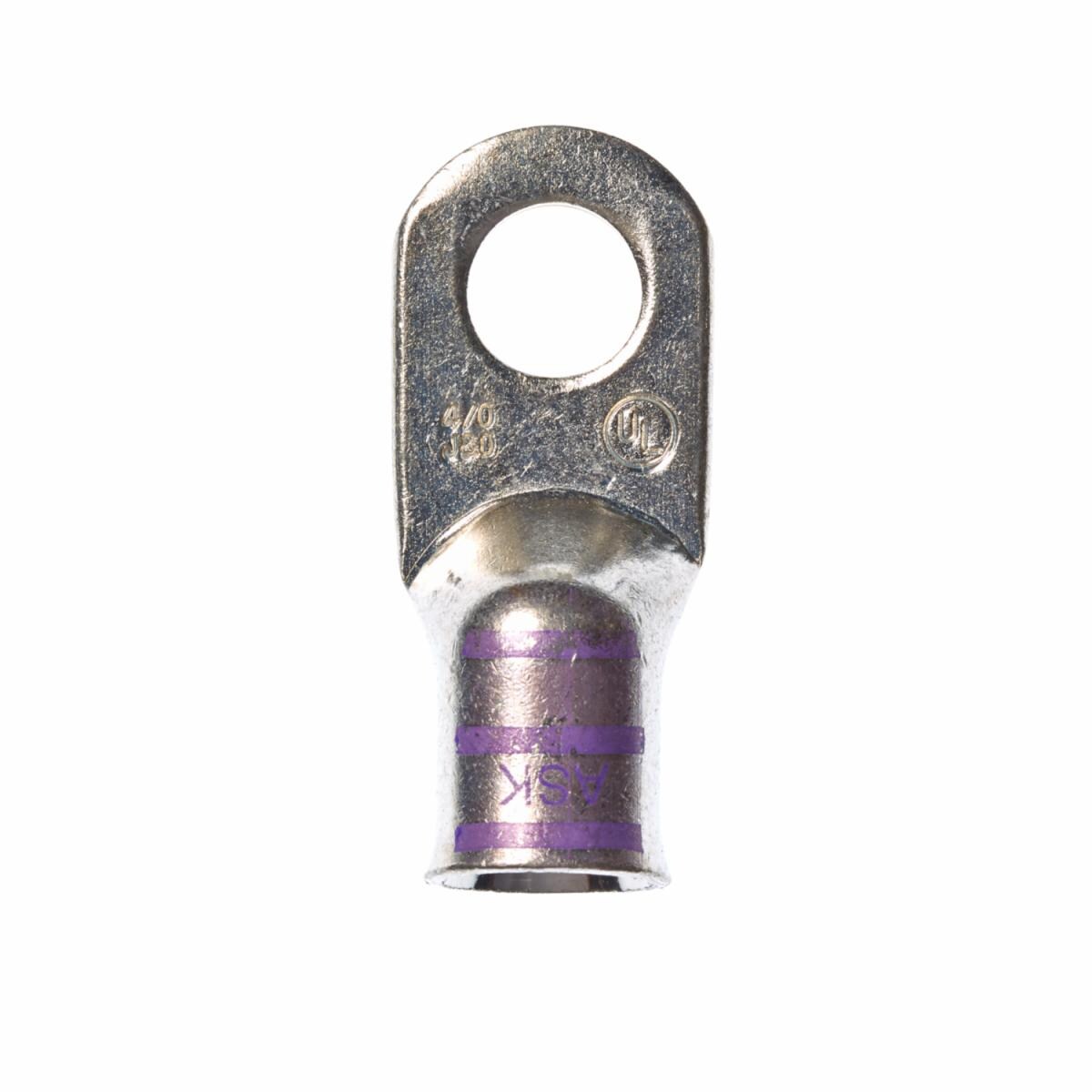

3M Scotchlok Non-Insulated Copper Seamless Compression Lug Ring Tongue has a non-insulated, seamless barrel and ensures an ideal fit while offering reliable and safe performance. Copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M Scotchlok Non-Insulated Copper Seamless Compression Lug Ring Tongue provides electrical connection to a pre-stripped end of a stranded wire. UL Listed and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Large Gauge Ring Tongue, visit the official 3M website.
| Pieces Per Case | 100 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100036030 |
| Part Number | 3MABR-MC2-516RX |
| UPC | 00054007091882 |
| Per Case | 100 |
| Weight | 4.2 lbs |
| Make to Order | Yes |
| Brand | Scotchlok™ |
| Connection Width | 0.315 in, 8 mm |
| Maximum Conductor Size | 14 AWG, 2.08 mm² |
| Minimum Conductor Size | 1.31 mm², 16 AWG |
| Barrel Style | Seamless |
| Insulation Material | Non-insulated |
| Overall Length (Imperial) | 1.69 in |
| Overall Width (Imperial) | 0.65 in |
| Terminal Style | Compression Lugs |
| Terminal Type | Ring |
| Dimensions | 9.37 × 6.73 × 5.12 in |
