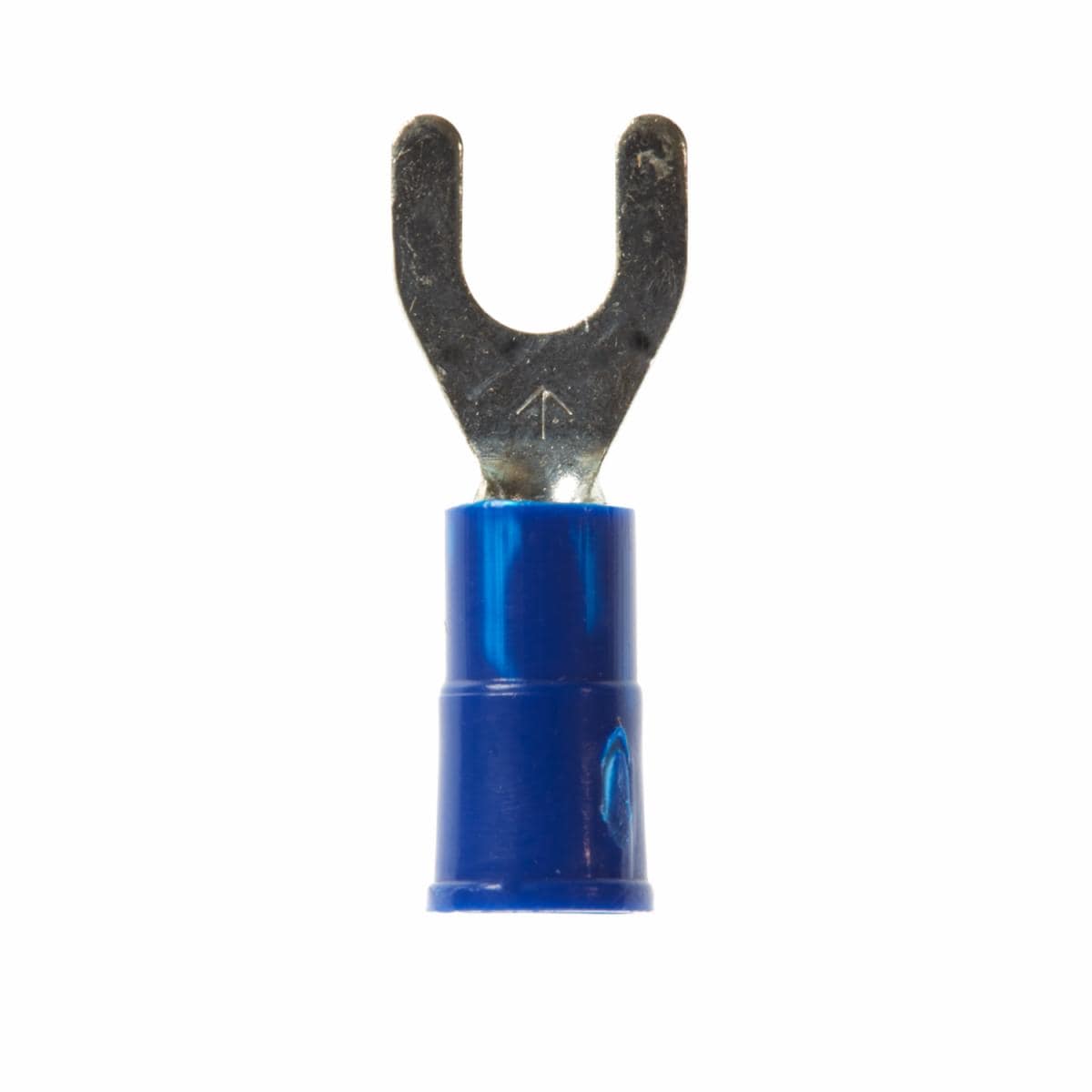

3M Scotchlok Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M Scotchlok Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Fork, visit the official 3M website.
| Pieces Per Case | 1000 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100164018 |
| Part Number | 3MABR-MV14-10FK |
| UPC | 00054007015321 |
| Per Case | 1000 |
| Weight | 2.253 lbs |
| Make to Order | Yes |
| Brand | Scotchlok™ |
| Maximum Conductor Size | 14 AWG, 2.08 mm² |
| Minimum Conductor Size | 1.31 mm², 16 AWG |
| Barrel Inside Diameter | 0.09 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Brazed |
| CSA File Number | LR22190 |
| Clearance (C) | 0.29 Inch |
| Dimension E | 0.74 Inch |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Overall Length (Imperial) | 0.9 in |
| Overall Width (Imperial) | 0.34 in |
| Stud Size | #10 |
| Terminal Style | Standard |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units per Case | 1000.0 |
| Dimensions | 5.1 × 4.6 × 3.1 in |
