Product Description
Advantages of 3M™ PPS™ Series 2.0 Spray Cup System Kit 26024
- 3M™ PPS™ Series 2.0 is our next generation, highest performing disposable spray cup system
- New quarter-turn lid locking system locks lid to cup and eliminates paint build up and cross threading
- Redesigned adapters provide four points of connection from spray gun to lid, improving stability and confidence especially in large applications
- Domed lid geometry and a wider fluid spout allows up to 3 fl. oz. (90 mL) of material to be held below the filter reducing inconsistent spray due to air-entrapment and sputter
- Full-diameter filters are built into every lid for the highest quality filtration; aids with fluid flow
- A new reusable hard cup is included in every lid/liner kit
- Mixing ratios are printed on each cup and a clear access window allows users to grasp liner while removing the lid, making tinting/refilling easier
- Enlarged sealing plugs provide stable base for cups to be placed upside down, keeping filters wet during temporary sealing and protection of coatings not in use
- 3M™ PPS™ (Legacy) red dispensers can be used with 3M™ PPS™ Series 2.0
- 3M™ PPS™ reduces cleaning solvent consumption by up to 70% and reduces prep and clean-up time by up to 50%; compared to conventional paint cup systems

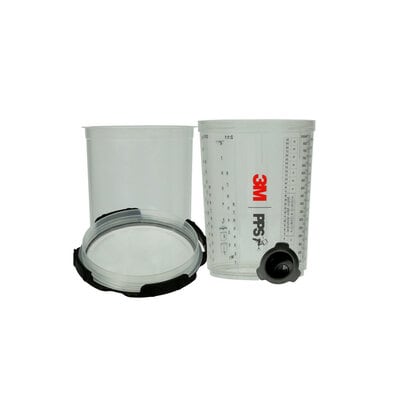

3M™ PPS™ Series 2.0 Spray Cup System Kit 26024 is 3M’s next generation, highest performing disposable spray cup system for mixing/measuring, filtering, spraying in any direction (360° spray rotation) and protecting coatings not in use. Each lid and liner kit contains 50 disposable lids with integrated collars and full diameter filters, 50 disposable liners, 1 reusable hard cup and 32 sealing plugs.
The Heart of 3M™ PPS™ Series 2.0
3M™ PPS™ Series 2.0 Spray Cup System Kit 26024 features the next generation of the 3M™ PPS™ paint preparation system. It contains all of the reusable, disposable components of the system: 50 disposable lids with integrated collars and full diameter filters, 50 disposable liners, 1 reusable hard cup and 32 sealing plugs. The 3M™ PPS™ system features disposable lids, liners and hard plastic cups in 5 sizes: 3oz (90mL), 6.8oz (200mL), 13.5oz (400mL), 22oz (650mL) and 28oz (850mL). A choice of sizes offers maximum efficiency for every job, and helps lower your cost per use.
Next Generation of the 3M™ PPS™ Paint Preparation System
The 3M™ PPS™ Series 2.0 Spray Cup System Kit 26024 is our latest, best-performing disposable spray cup system. The system has been redesigned from the connection to the cup, and has been improved in six ways offering a complete disposable spray cup solution for mixing/measuring, filtering, spraying and for temporary sealing and protection of sprayable coatings.
Cleanest Disposable Cup System
Every 3M™ PPS™ Series 2.0 Spray Cup System Kit 26024 lid features a quarter-turn lid locking system to help reduce paint build-up and possible contamination. Additionally, each lid and liner kit contains a new hard cup which also features universal mixing ratios built into the cup, eliminating the need for separate inserts and helping ensure the most accurate mix possible.
Reduce Material Waste by Mixing in the Cup
3M™ PPS™ Series 2.0 Spray Cup System Kit 26024 makes it even easier to mix directly in the cup. If you’re mixing on a scale, use the “max fill” notation on each cup to fit the maximum amount. Cups include a clear access window to help you see how much material is left while spraying. The window also allows you to hold the liner for easier, cleaner lid removal. This is especially useful during refills or tinting.
Improved Fluid Flow for More Consistent Paint Application
3M™ PPS™ Series 2.0 Spray Cup System Kit 26024 feature a domed geometry that allows up to 3 oz (90mL) of material below the filter during on-demand spraying. This reduces sputter and other inconsistencies in spray performance. Lids also feature a wider spout for improved fluid flow. A built-in full-diameter filter delivers the highest quality filtration – no assembly needed.
More Confidence in the Connection to Your Gun
A new adapter design provides a four-point connection and a wider 360° platform to ensure a stable, reliable lid-to-spray-gun connection. Larger sealing plugs do more than just seal. For instance, you can turn the cup upside down and use the new sealing plug as a base for temporary sealing and protecting, helping keep the built-in filter wet and reducing the need for replacement lids.
A System for Both Solvent-Based and Waterborne Products
Every lid features a built-in full diameter filter available in 200 micron or 125 micron mesh. Be sure to consult the paint or coatings manufacturer for the recommended filter mesh size.
Use the Right Size Cup for Every Repair
PPS™ 2.0 Spray Cup System is available in 5 sizes: 3 oz (90mL), 6.8 oz (200mL), 13.5 oz (400mL), 22 oz (650mL) and 28 oz (850mL). Using the right size cup for every repair not only reduces your cost per lid and liner, it can reduce the likelihood of overmixing.
Reduce Solvent Usage by up to 70%
After spraying, the painter can use the sealing plug to seal and protect the paint or coating for later use or simply discard the lid and liner, leaving only the adapter and spray gun to clean. Discard the disposable lid and liner in accordance with local government requirements. Use a small amount of solvent for cleaning the spray gun and the PPS™ Adapter. Shops using PPS™ Series 2.0 often experience a 70% reduction in cleaning solvent usage. Most guns can be cleaned with less than 3 oz. of solvent.
Your Spray Gun Functions at any Angle, Even Upside Down
Because PPS™ Series 2.0 is a closed system, you can spray in any orientation to a full 360 degrees. This allows the painter to spray consistently at 90° to the part, no matter how the part is positioned. It makes material transfer more consistent, limits paint overspray and reduces paint consumption.
Reduces the Chance of Contamination Between Jobs
Because the painter uses a new disposable lid and liner for each mix, there is less risk of outside contamination. Using a fresh lid and liner with each paint job, rather than washing out reusable components, often improves overall productivity in prep and clean-up time by as much as 50%.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, Ohio, JAM Industrial Supply, LLC has been a 3M Strategic Distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery, and prices to our customers.
Additional information
| Weight | 5.6 lbs |
|---|---|
| Dimensions | 16 × 14 × 5.5 in |
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Size | |
| Filter Size | 200 micron filter |
