3M Scotchlok Non-Insulated Butted Seam Male Disconnect terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M Scotchlok Non-Insulated Butted Seam Male Disconnect terminal attaches to the mating part with a tongue that slips over the female tab. It has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Non-Insulated Butted Seam Male Disconnect, visit the official 3M website.
| Pieces Per Case | 1 |
|---|---|
| Product Id | 7100163900 |
| Part Number | 3MABR-71M-187-20 |
| UPC | 00054007301271 |
| Weight | 0.005 lbs |
| Make to Order | Yes |
| Brand | Scotchlok™ |

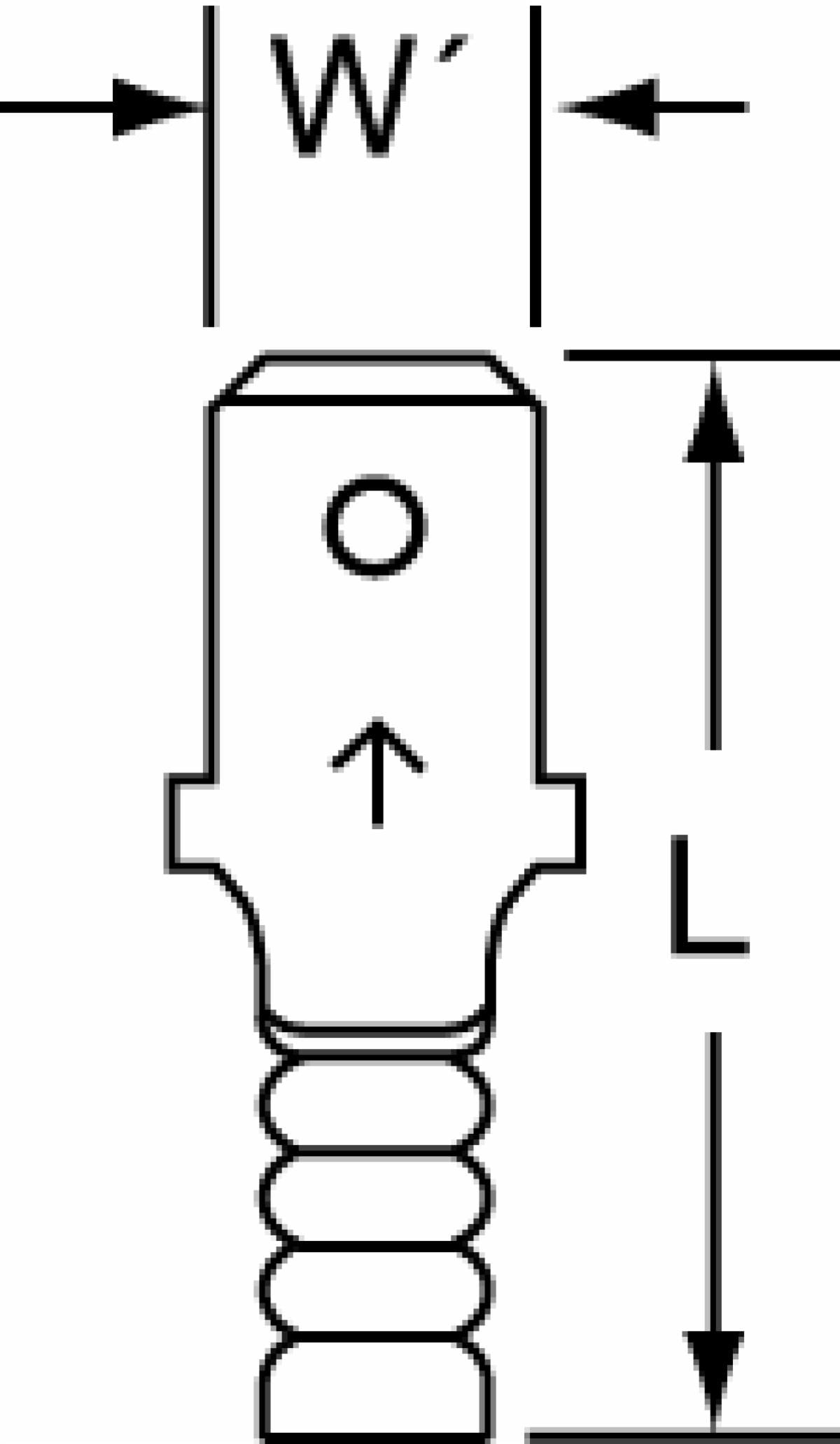

| Connection Width | 0.187 in, 4.75 mm |
| Maximum Conductor Size | 18 AWG, 1 mm² |
| Minimum Conductor Size | .34 mm², 22 AWG |
| Disconnect Type | Male |
| Terminal Type | Disconnect |
