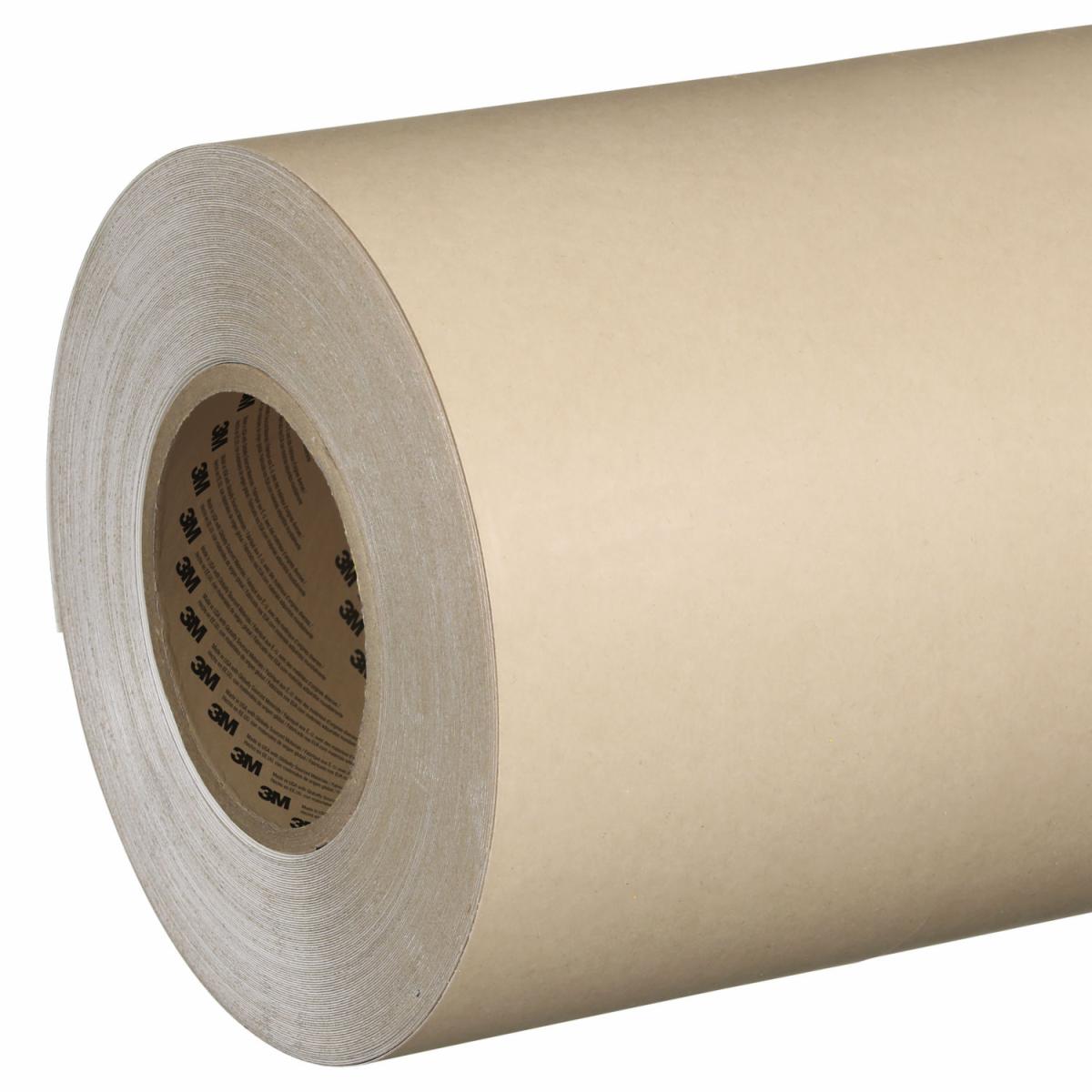

3M Industrial Sealing Tape IS1 provides an easy sealing method that creates a moisture barrier under panels or where rivets, screws, or nails are present in automotive, specialty vehicle, electronic and heating, ventilation, and cooling (HVAC), and wind energy applications. This conformable tape is engineered with a waterproof membrane and acrylic adhesive that helps protect interior environments from leakage at joints, including panels, floors, trim, and frames, by sealing around the fastener for a secure seal. Designed for reliability, the product provides an easy-to-use and effective alternative to slow-curing and messy liquid sealants while offering robust adhesion that sticks to most substrates.
Because of the versatility of the tape, it can be applied in temperatures as low as 0 °F (-18 °C) with an operating temperature range of -40 °F to 240 °F (-40 °C to 116 °C). 3M Industrial Sealing Tape IS1 excels in water leak prevention, including sealing around RV windows, automotive frames, interior joints in HVAC systems, the tops of electrical enclosures, and more. For a tight water seal, explore the sealing potential of this tape in your next industrial application.
3M Industrial Sealing Tape IS1 is part of a family of products that offer the ultimate solution in water leak prevention, combining performance with the speed of a pressure-sensitive tape application. Its construction allows for dependable adhesion to complex shapes and a variety of surfaces — and when driven through by rivets, screws, and other fasteners, the tape locks in a water-tight seal. Offering high-tack adhesion with minimal surface preparation, 3M Industrial Sealing Tape IS1 forms an aggressive bond on various surface types, including fiberglass, metal, painted surfaces, plastics, wood, polystyrene, and more. This innovative product provides high-performance results, even during cold-weather months, allowing for continuous production throughout the year.
For more information about Industrial Sealing Tape IS1, visit the official 3M website.
| Pieces Per Case | 1 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100377266 |
| Part Number | 3MABR-IS1 |
| UPC | 00068060762702 |
| Per Case | 1 |
| Weight | 50.956 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Backing Thickness | 0.13 mm, 5 mil |
| Core Size | 3 in, 76.2 mm |
| Face Side Adhesive Thickness | 0.13 mm, 5 mil |
| Length | 32.918 m, 36 yd |
| Width | 1524 mm, 60 in |
| Primary Liner Thickness | 6 mil, 0.16 mm |
| Tensile Strength | 22 lb/in, 385 N/100mm |
| Adhesion to Steel | 57 N/100mm (52 oz/in) |
| Adhesive Type | Acrylic |
| Application | Automotive, Electronics, Metalworking, Military & Government, Specialty Vehicles, Transportation, Appliance, General Industrial |
| Application Method | Pressure-sensitive Adhesive |
| Backing (Carrier) Material | Multilayer Elastomeric Film |
| Case Quantity | 1 |
| Elongation at Break | >700% |
| Face Side Adhesive Type | Acrylic |
| Flame Resistant | No |
| Flame Retardant | No |
| Indoor/Outdoor | Both |
| Liner Color | Tan |
| Liner Material | Polycoated Kraft |
| Number of Adhesive Sides | Single-sided |
| Permeability | Non-permeable |
| Product Color | White |
| Product Type | Sealing Tape |
| Shelf Life | 24 Month |
| Specifications Met | ASTM E2178 |
| UV Resistant | Yes |
| Dimensions | 62.3 × 8.5 × 8.5 in |
