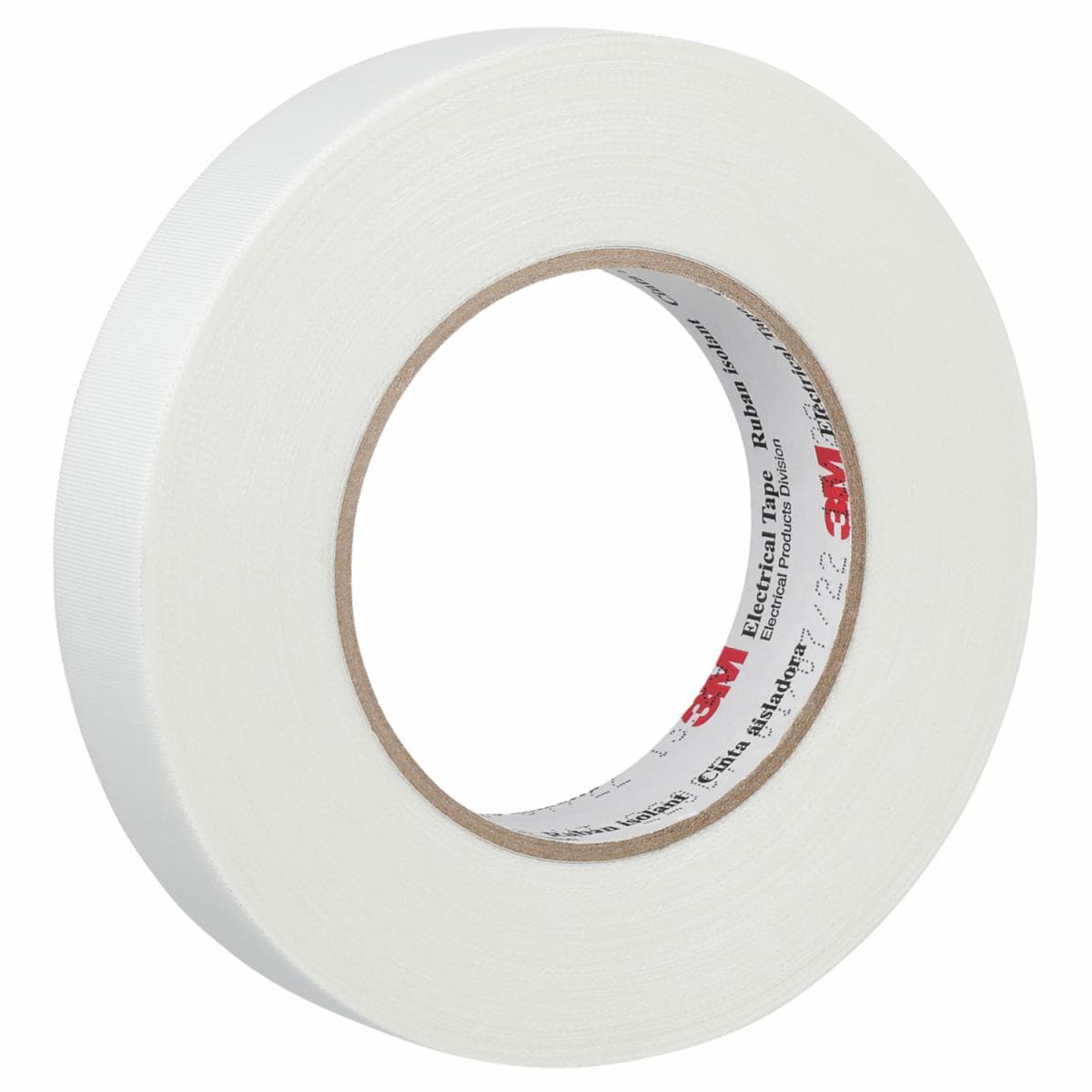

3M Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).
3M Tape 79 has a pressure sensitive, acrylic adhesive that offers optimized adherence and resists edge tears. This conformable tape is solvent resistant and has a glass cloth backing that will not shrink, burn or rot while ensuring maximum stability. The printable tape is designed for banding and strapping applications. It provides excellent absorption of varnishes and resin. UL Listed and RoHS 2011/65/EU Compliant.
For more information about Glass Cloth Electrical Tape 79, visit the official 3M website.
| Pieces Per Case | 96 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7010304000 |
| Part Number | 3MABR-79 3/8"X60YD |
| UPC | 00051138492762 |
| Per Case | 96 |
| Weight | 27.1 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Length | 54.8 m, 60 yd |
| Width | 0.375 in, 9.53 mm |
| Adhesive Type | Acrylic |
| Application | Insulation |
| Backing (Carrier) Material | Glass Cloth |
| Dielectric Strength | 3000 V |
| Insulation Resistance | 2.7 x 10^2 megohms |
| Product Color | White |
| Shelf Life | 5 Year |
| Tape Grade | Professional |
| Dimensions | 12.3 × 12.3 × 10.3 in |
