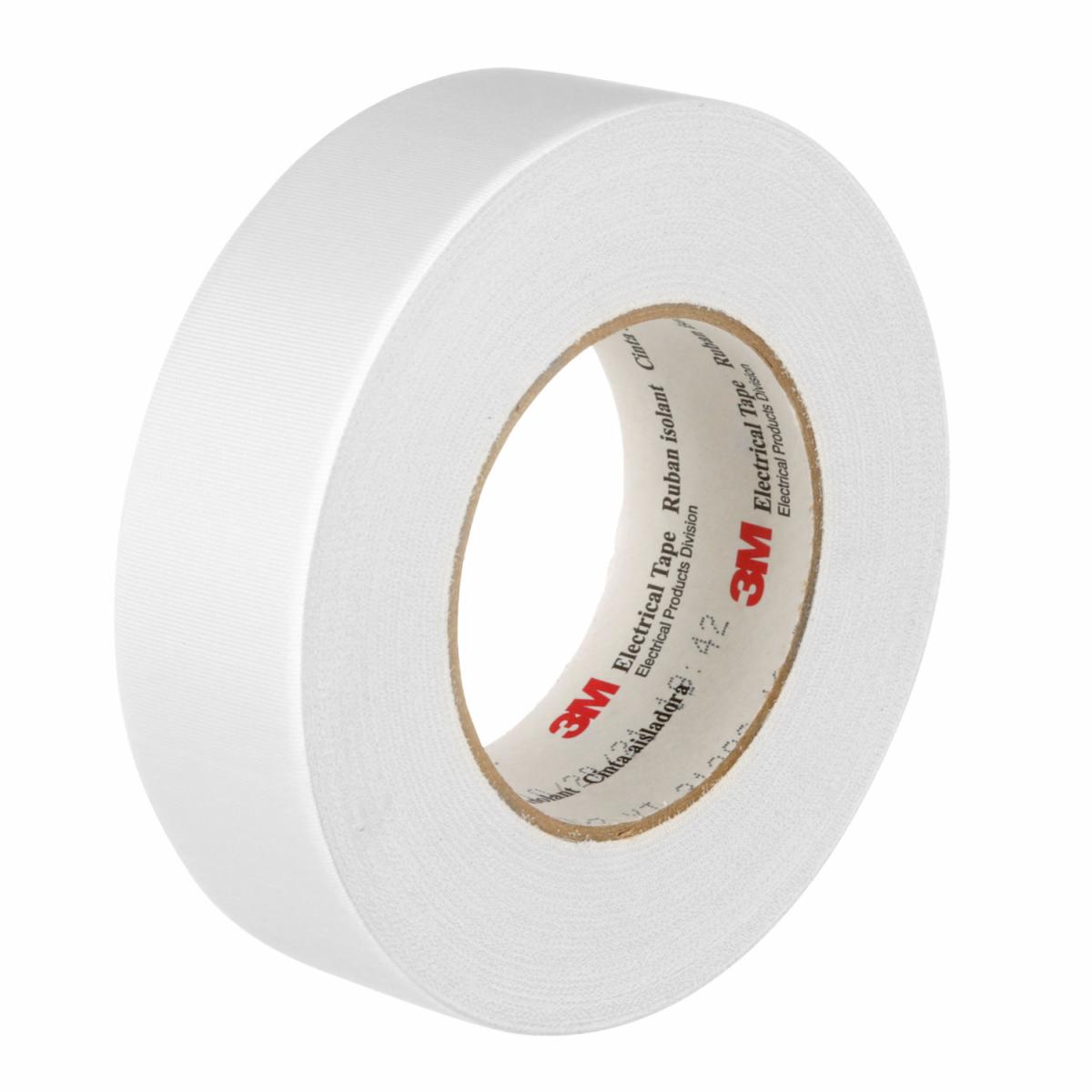

3M Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.
3M Glass Cloth Tape 27 is edge tear resistant, conformable, and abrasion resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. This tape is used for heat-stable insulation for furnace and oven controls, motor leads, and switches. UL Recognized. Printable.
For more information about Glass Cloth Electrical Tape 27, visit the official 3M website.
| Pieces Per Case | 144 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7010297639 |
| Part Number | 3MABR-27 1/4"X60YD |
| UPC | 00051138404475 |
| Per Case | 144 |
| Weight | 27.9 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Backing (Carrier) Thickness | 0.127 mm, 5 mil |
| Length | 54.8 m, 60 yd |
| Width | 0.25 in, 6.35 mm |
| Adhesive Type | Rubber |
| Application | Electrical Maintenance, Insulation |
| Backing (Carrier) Material | Glass Cloth |
| Dielectric Breakdown | AC >= 2.0 kV |
| Dielectric Strength | 2725 V |
| Insulation Resistance | 5 x 10^1 megohms |
| Product Color | White |
| Shelf Life | 5 Year |
| Specifications Met | CSA Certified, RoHS 2011/65/EU, UL Recognized |
| Tape Grade | Professional |
| Dimensions | 12.3 × 12.3 × 10.3 in |
