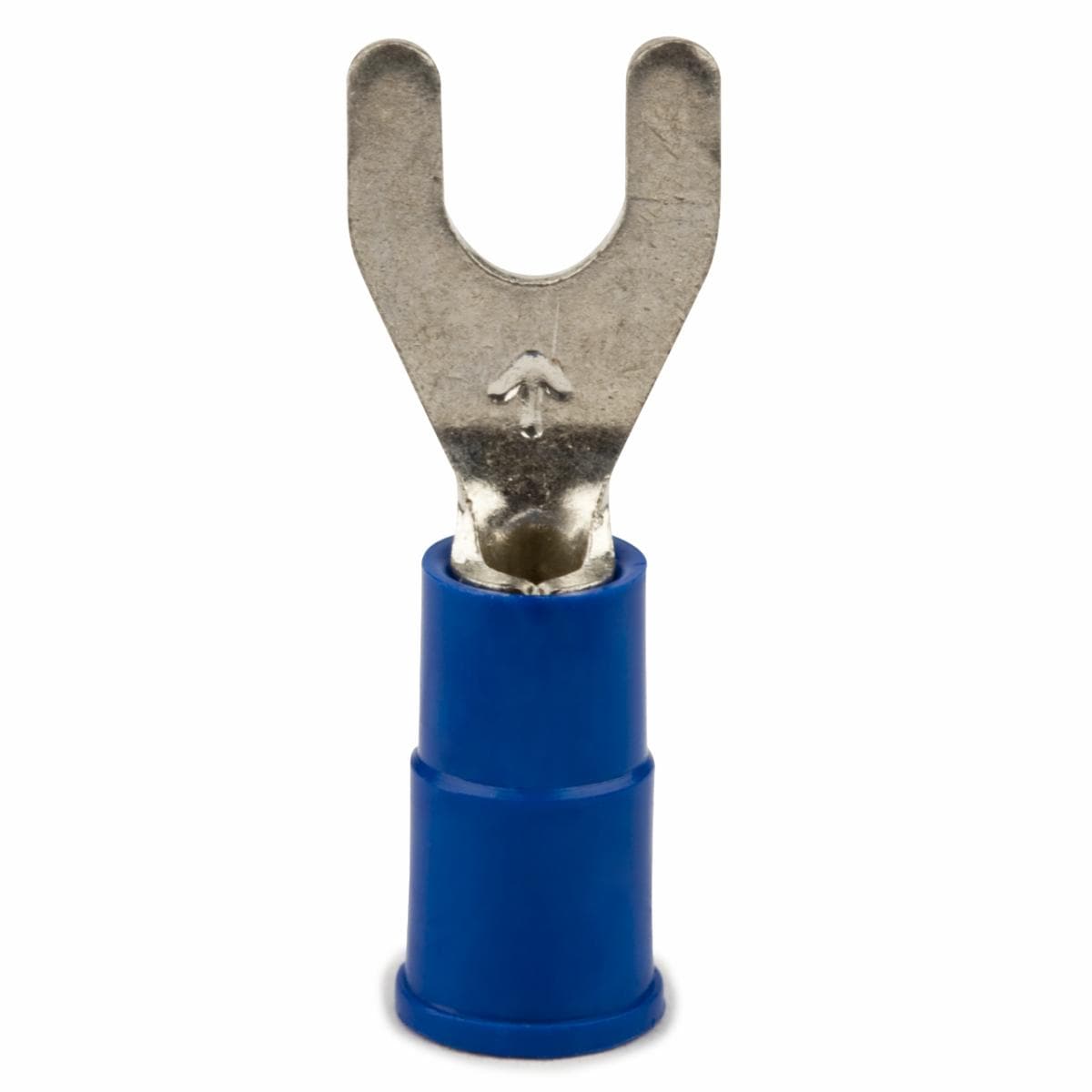

3M Highland Vinyl Insulated Butted Seam Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M Highland Vinyl Insulated Butted Seam Standard Forkl is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Fork Terminal, visit the official 3M website.
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
| Pieces Per Case | 1 |
|---|---|
| Unit of Measure | Bag |
| Product Id | 7010349249 |
| Part Number | 3MABR-94771 |
| UPC | 00054007947714 |
| Weight | 0.217 lbs |
| Make to Order | Yes |
| Brand | Highland™ |
| Maximum Conductor Size | .0823 mm², 18 AWG |
| Minimum Conductor Size | 0.326 mm², 22 AWG |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Terminal Style | Standard |
| Terminal Type | Fork |
| Size | 4 in X 6 in |
| Dimensions | 6 × 4 × 1.2 in |
