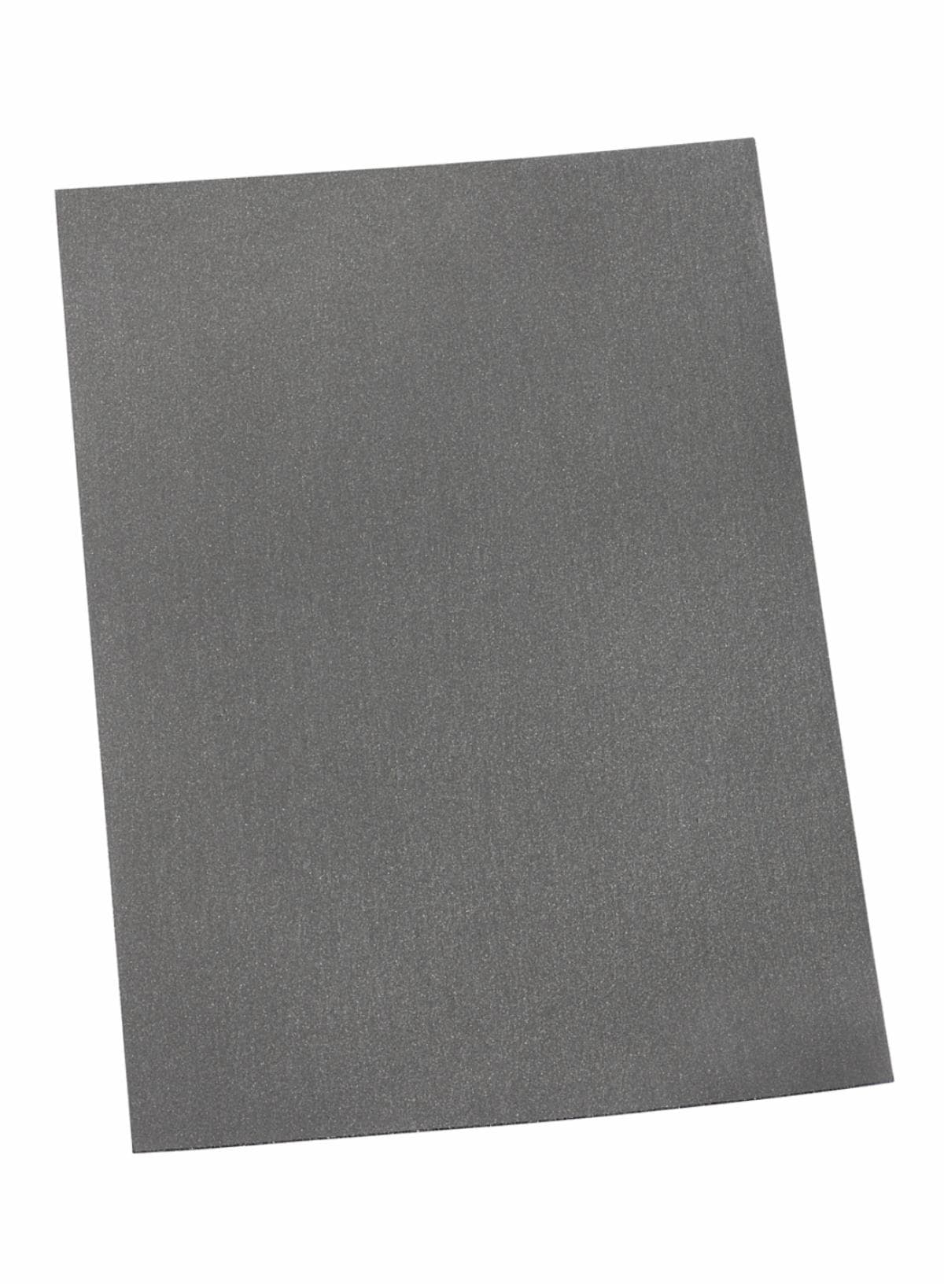

The 3M EMI Absorber AB5000SHF Series is a magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz – 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.
The target frequency range – the “sweet spot” for peak performance – for 3M EMI Absorber AB5000SHF Series – is 800 MHz – 2 GHz. Potential product usages include covering, attaching or wrapping to cables, camera modules, display CoF, FPCs, PCBs, semiconductor chips and sensors.
For more information about EMI Absorber AB5010SHF, visit the official 3M website.
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
| Pieces Per Case | 50 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100079804 |
| Part Number | 3MABR-AB5010SHF |
| UPC | 00051131288515 |
| Per Case | 50 |
| Weight | 3.311 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Length | 11.693 in, 297 mm |
| Thickness | 0.1 mm, 3.937 mil |
| Width | 210 mm, 8.268 in |
| Adhesive | Pressure-sensitive Acrylic |
| Application | EMI Absorbing |
| FFDM Code Name | N/A |
| Frequency Range | 800 MHz – 2 GHz |
| Magnetic Permeability | 30 |
| Number of Adhesive Sides | 1 |
| Product Usage | Cables, Camera Modules, Display Chip on Flex, Enclosures, Flexible Printed Circuits, Printed Circuit Boards, Semiconductor Chips, Sensors |
| Total Thickness | 0.1 mm |
| Total Thickness (Metric) | 0.1 mm |
| Dimensions | 11.1 × 14.6 × 4.5 in |
