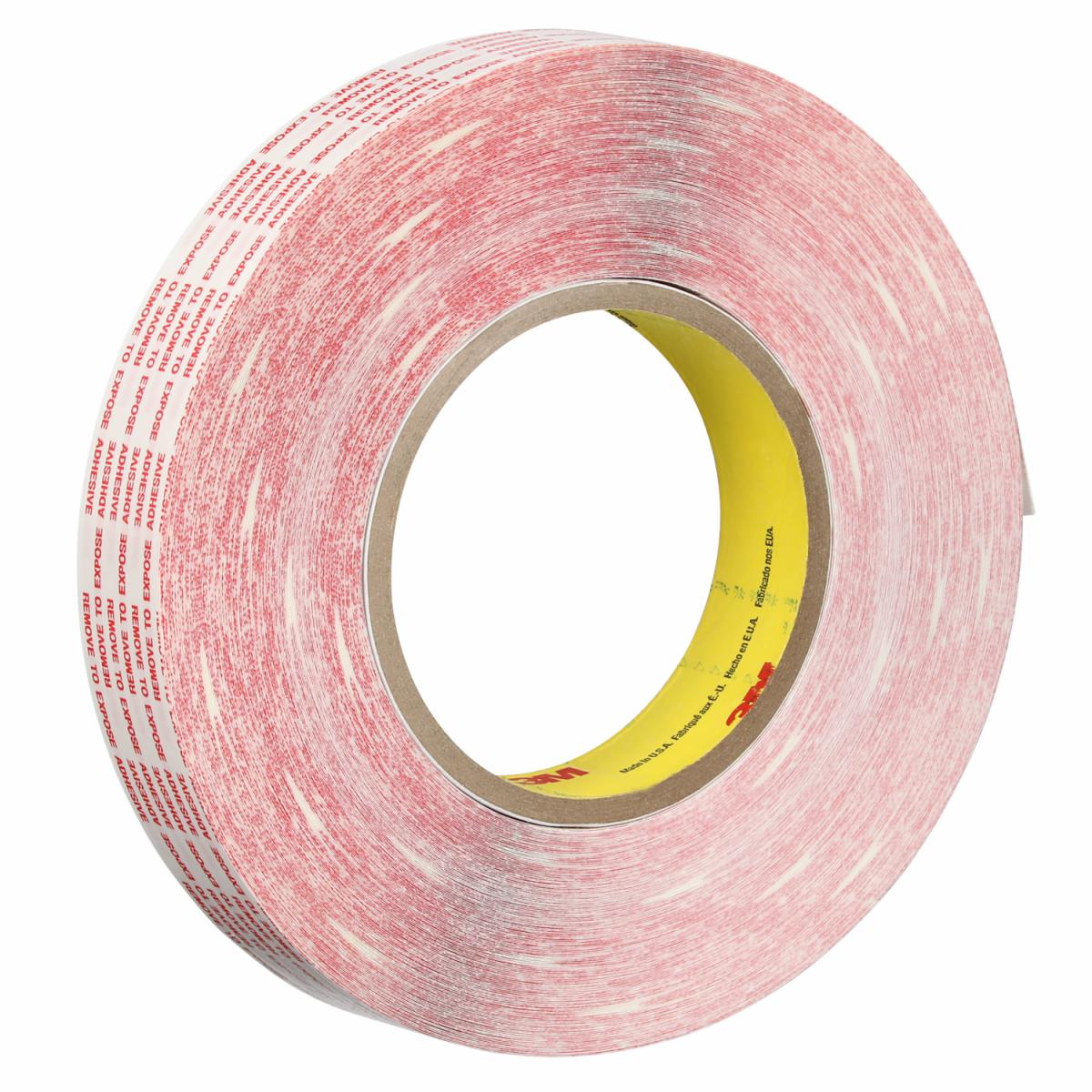

3M Double Coated Tape Extended Liner 476XL is a general purpose tape with a pressure sensitive adhesive mounted on a removable extended paper liner for easy liner starting and removal. It is ideal for a variety of closure applications, point-of-purchase displays and indirect food contact applications.
Easy Liner Starting and Removal Helps Keep Jobs Running Smoothly
The 3M™ Double Coated Tapes Extended Liner 476XL is constructed with either a polypropylene film or tissue carrier and densified kraft white paper liner that extends beyond the width of the rubber adhesive to provide easy liner starting and removal. The products provide a dry edge or finger lift edge on each side of the tape for easy liner removal.
Recommended Applications
Reliable Sealing on a Variety of Substrates
The 3M™ Double Coated Tape Extended Liner 476XL portfolio offers two rubber adhesive solutions for bonding to many shipping boxes and tubes as well as permanent paper to paper bonding:
Products featuring Adhesive 770 include: 3M™ Double Coated Extended Liner Tape 9925XL
Understanding Double Coated Tapes
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts, and hobby.
Bringing Better Ideas to the Surface through Science and Innovation
In the 3M Industrial Adhesives and Tapes Division, 3M apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, the technologies help customers like you deliver competitive products to the market faster and more efficiently.
For more information about Double Coated Tape Extended Liner 476XL, visit the official 3M website.
| Pieces Per Case | 24 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7010300227 |
| Part Number | 3MABR-476XL |
| UPC | 00021200562396 |
| Weight | 37.3 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Backing (Carrier) Thickness | 0.05 mm, 2 mil |
| Core Size | 3 in, 75 mm |
| Face Side Adhesive Thickness | 0.05 mm, 2 mil |
| Length | 54.86 m, 60 yd |
| Width | 1.8 in, 45.72 mm |
| Primary Liner Thickness | 0.094 mm, 3.7 mil |
| Adhesive Type | Synthetic Rubber |
| Application | High Tack Adhesion, Holding, Joining, Laminating, Mounting, Splicing, Attaching, Bonding |
| Back Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Backing (Carrier) Material | Tissue |
| Clean Removal | No |
| Face Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Features | High Surface Energy, Permanent Bonding, UV-resistant |
| Flame Retardant | No |
| Indoor/Outdoor | Indoor |
| Industries | Consumer Goods, Craft, Food & Beverage, Packaging, Point of Purchase, Signage, Appliance, Converter Solutions, Electronics, General Industrial, MRO, Paper, Print |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | 62# Densified Kraft Paper |
| Primary Liner Color | White |
| Product Form | Roll |
| Shelf Life | 18 Month |
| Substrate | ABS, Cardboard, Foam, Paper, PC, Plastic, Acrylic, Glass, Metal |
| UV Resistant | Yes |
| Units per Case | 24 |
| Dimensions | 13.4 × 13.4 × 13.3 in |
