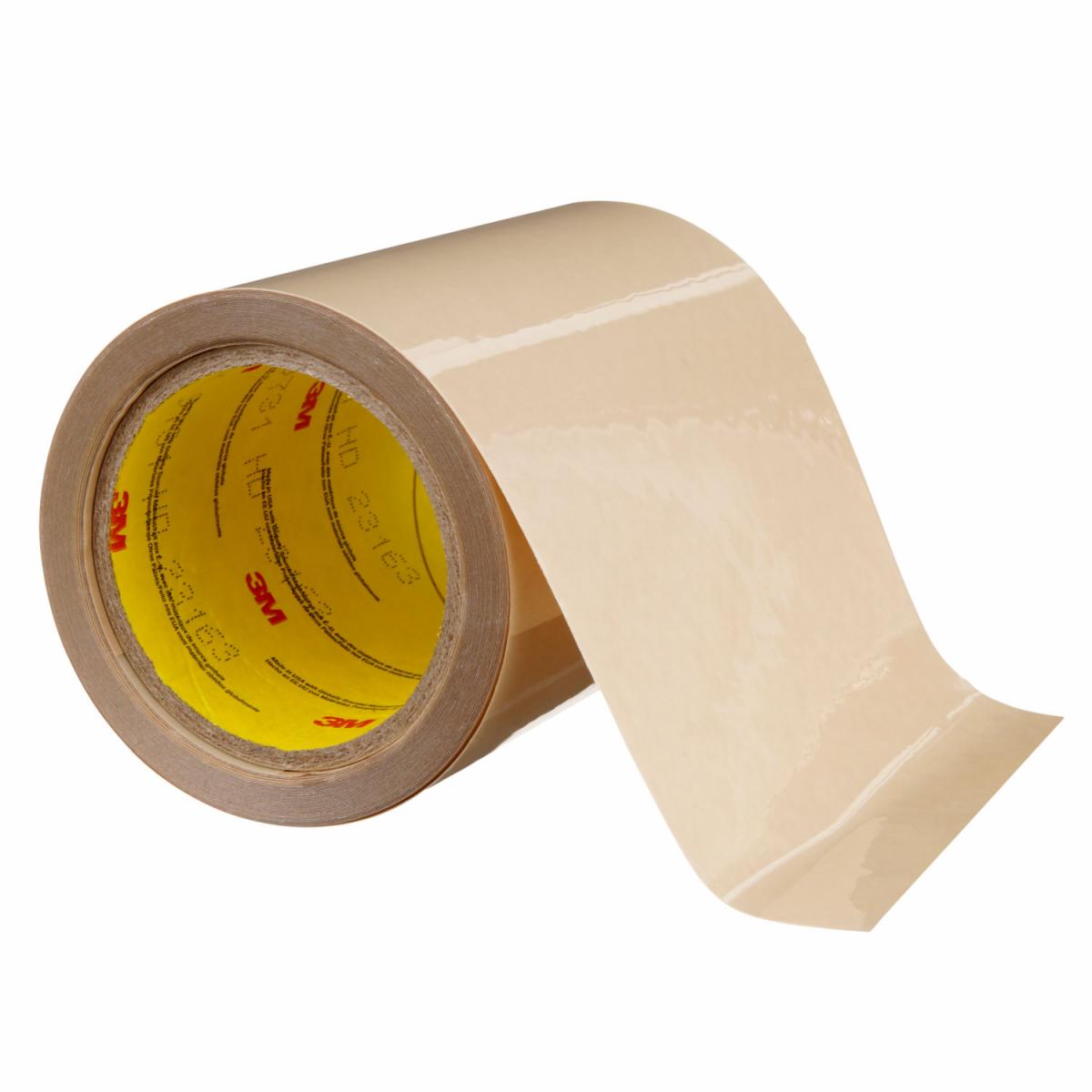

3M Double Coated Tape 9731-050 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.
For more information about Double Coated Tape 9731-050, visit the official 3M website.
| Pieces Per Case | 1 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7100080412 |
| Part Number | 3MABR-9731-050 |
| UPC | 00051131177239 |
| Per Case | 1 |
| Weight | 5.7 lbs |
| Make to Order | Yes |
| Brand | 3M™ |
| Back Side Adhesive Thickness | 0.02 mm, 0.8 mil |
| Backing (Carrier) Thickness | 0.014 mm, 0.056 mil |
| Face Side Adhesive Thickness | 0.015 mm, 0.6 mil |
| Length | 32.91 m, 36 yd |
| Width | 6 in, 152.4 mm |
| Primary Liner Thickness | 0.11 mm, 4.2 mil |
| Adhesive Type | Acrylic/Silicone |
| Application | Gasket Assembly |
| Back Side Adhesive Type | Silicone |
| Backing (Carrier) Material | Polyester Film |
| Backing Material | Polyester |
| Carrier Material | Polyester Film |
| Carrier Thickness | 0.56 mil |
| Carrier Thickness (Metric) | 0.014 mm |
| Face Side Adhesive Type | High Performance Acrylic Adhesive 350 |
| Industries | Aerospace, Medical, Oil & Gas, Signage, Appliance, Automotive, Electronics, General Industrial, Metalworking, Specialty Vehicles, Transportation |
| Master Size Length (Metric) | 98.8 m |
| Master Size Width (Metric) | 122 cm |
| Number of Adhesive Sides | Double-sided |
| Overall Thickness (Imperial) | 5.5 mil |
| Primary Liner | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Color | Tan |
| Product Color | Transparent |
| Product Form | Roll |
| Secondary Liner | Polyester Film |
| Shelf Life | 18 Month |
| Dimensions | 8.4 × 8.4 × 14.6 in |
