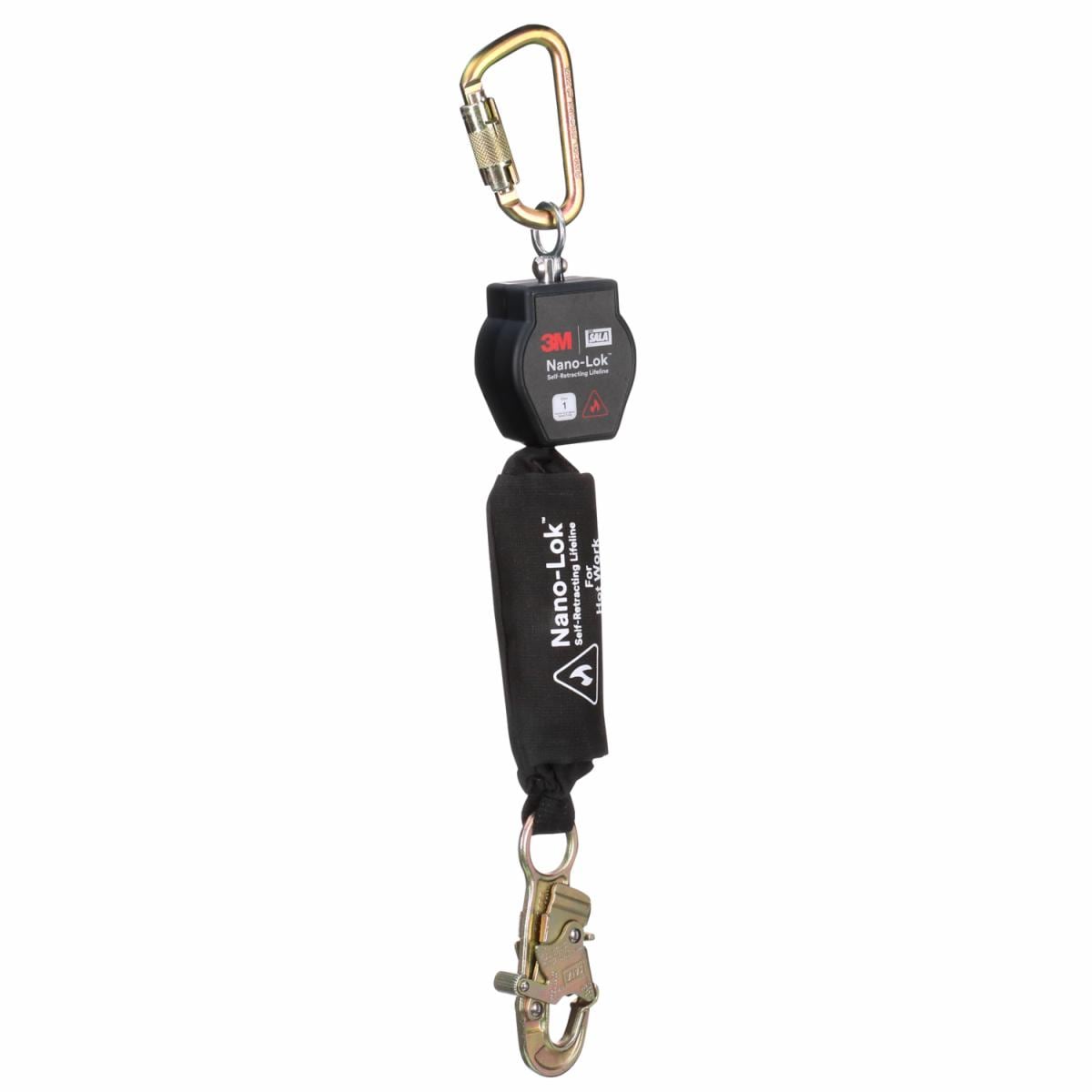

3M DBI-SALA Nano-Lok Self-Retracting Lifeline (SRL) is designed for ease of use and is ideal for direct connection to most safety harnesses. These SRL’s are specifically designed for “hot work” environments such as welding and foundry work. Available in single leg and twin leg models.
Nano Lok is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are dozens of models to choose from to suit almost any application. Nano Lok locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.
For more information about DBI-SALA Nano-Lok Hot Work Self-Retracting Lifeline with Anchor Hook 3100562, visit the official 3M website.
| Pieces Per Case | 1 |
|---|---|
| Unit of Measure | Each |
| Product Id | 7012828668 |
| Part Number | 3MABR-3100562 |
| UPC | 00648250242636 |
| Weight | 3.365 lbs |
| Make to Order | Yes |
| Brand | DBI-SALA® |
| Average Arrest Force | 1125 lbf (OSHA up to 420 lb), 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb – 310 lb), 5 kN (ANSI) |
| Lifeline Length | 1.83 m, 6 ft |
| Maximum Arrest Force | 1800 lbf (ANSI), 1800 lbf (OSHA up to 420 lb), 8 kN (ANSI), 8 kN (OSHA up to 420 lb), 1800 lbf (OSHA 130 lb – 310 lb), 8 kN (OSHA 130 lb – 310 lb) |
| Net Weight | 1.63 kg, 3.6 lb |
| Length | 1.83 m, 6 ft |
| Weight Capacity | 190 kg, 420 lb |
| Anchor Connection Type | Carabiner |
| Anchor Hook Material | Zinc Plated Steel |
| Anchor Material | Zinc Plated Steel |
| Connected Safety ID Equipped | Yes |
| Housing Material | Nylon Thermoplastic |
| Install Type | Portable & Removable |
| Leg Count | Twin-Leg |
| Lifeline Connection Type | Snap Hook |
| Lifeline Hook Material | Zinc Plated Steel |
| Lifeline Material | Fire Resistant Web |
| Maximum Number of Users | One |
| Mounting Type | Overhead Anchor Point |
| Product Color | Black |
| Product Series | Nano-Lok™ |
| Product Type | Self Retracting Lifeline |
| Recommended Application | Blasting, Climbing, Demolition, Sanding, Maintenance, Remediation, Welding |
| Recommended Industry | Transportation, Construction, General Industrial, Manufacturing, Oil & Gas, Utilities |
| Specifications Met | 29 CFR OSHA 1910.140, ANSI Class Level 1, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1926.502 |
