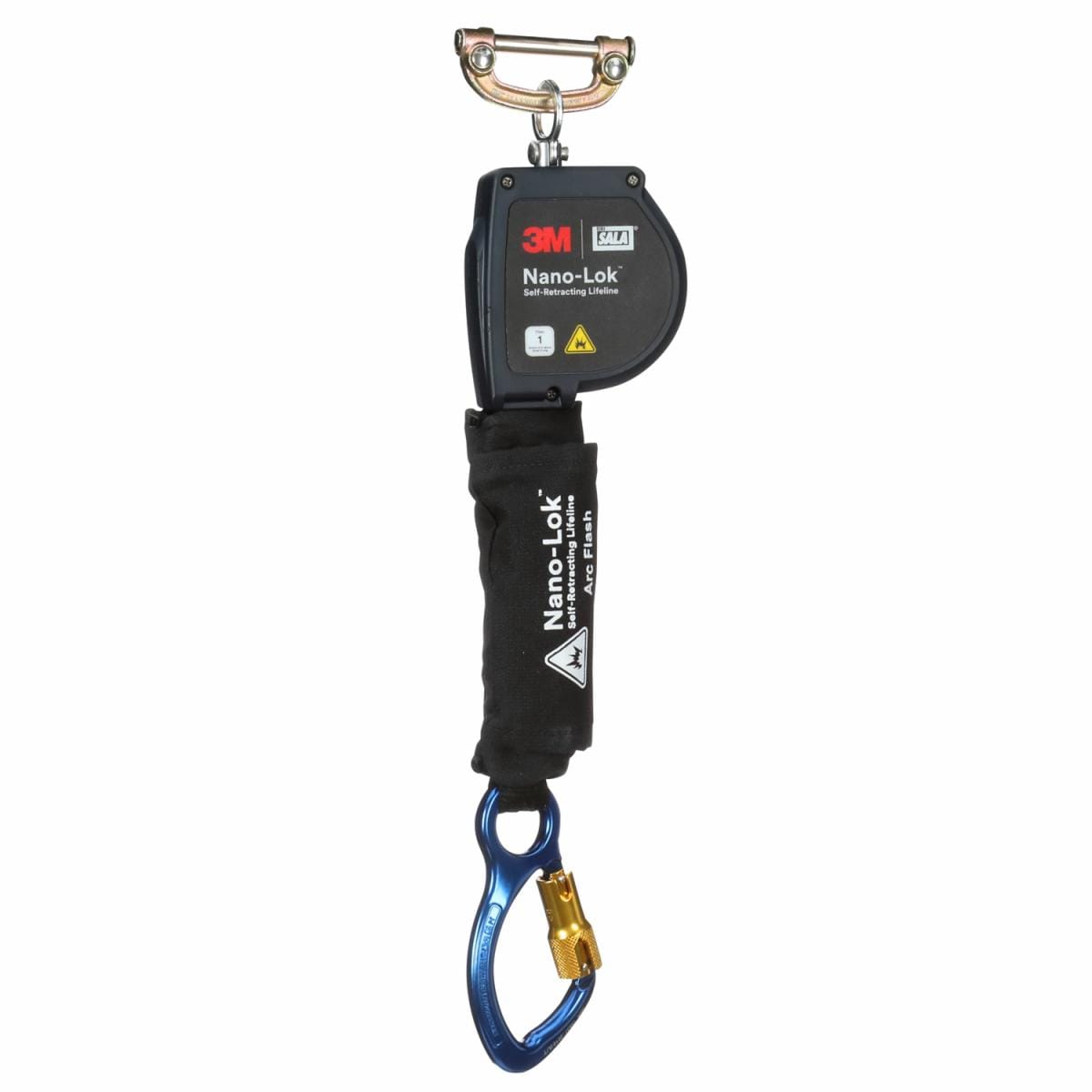

3M DBI-SALA Nano-Lok Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline offers versatility for many different industrial applications.
3M DBI-SALA Nano-Lok Self-Retracting Lifeline is ideal for direct connection to most harnesses. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from that suit almost any application. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline locks quickly stopping a fall within inches – providing more protection at low heights. These features are key safety improvements and provide the user with additional security on the job.
For more information about DBI-SALA Nano-Lok Arc Flash Self-Retracting Lifeline with Quick Connect 3100577, visit the official 3M website.
| Pieces Per Case | 1 |
|---|---|
| Unit of Measure | Each |
| Product Id | 7100325447 |
| Part Number | 3MABR-3100577 |
| UPC | 00648250242780 |
| Weight | 3.560 lbs |
| Make to Order | Yes |
| Brand | DBI-SALA® |
| Average Arrest Force | 1125 lbf (OSHA up to 420 lb), 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb – 310 lb), 5 kN (ANSI) |
| Lifeline Length | 2.4 m, 8 ft |
| Maximum Arrest Force | 1800 lbf (ANSI), 1800 lbf (OSHA up to 420 lb), 8 kN (ANSI), 8 kN (OSHA up to 420 lb), 1800 lbf (OSHA 130 lb – 310 lb), 8 kN (OSHA 130 lb – 310 lb) |
| Net Weight | 1.27 kg, 2.8 lb |
| Length | 2.4 m, 8 ft |
| Weight Capacity | 190 kg, 420 lb |
| Working Length | 1.76, 5.9 |
| Connected Safety ID Equipped | Yes |
| Harness Connection Type | Single Pin Connector |
| Housing Material | Nylon Thermoplastic |
| Install Type | Portable & Removable |
| Leg Count | Twin-Leg |
| Lifeline Connection Type | Carabiner |
| Lifeline Hook Material | Aluminum |
| Lifeline Material | Fire Resistant Web |
| Maximum Number of Users | One |
| Mounting Type | Direct to Harness Back |
| Product Color | Black |
| Product Series | Nano-Lok™ |
| Product Type | Self Retracting Lifeline |
| Recommended Application | General Industrial, Assembly, Electrical, Ladder Climbing, Maintenance, Remediation |
| Recommended Industry | Transportation, Construction, General Industrial, Manufacturing, Oil & Gas, Utilities |
| Specifications Met | 29 CFR OSHA 1910.140, ANSI Class Level 1, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1926.502 |
| Size | 11.400 in X 7.300 in |
| Dimensions | 7.300 × 11.400 × 3.300 in |
