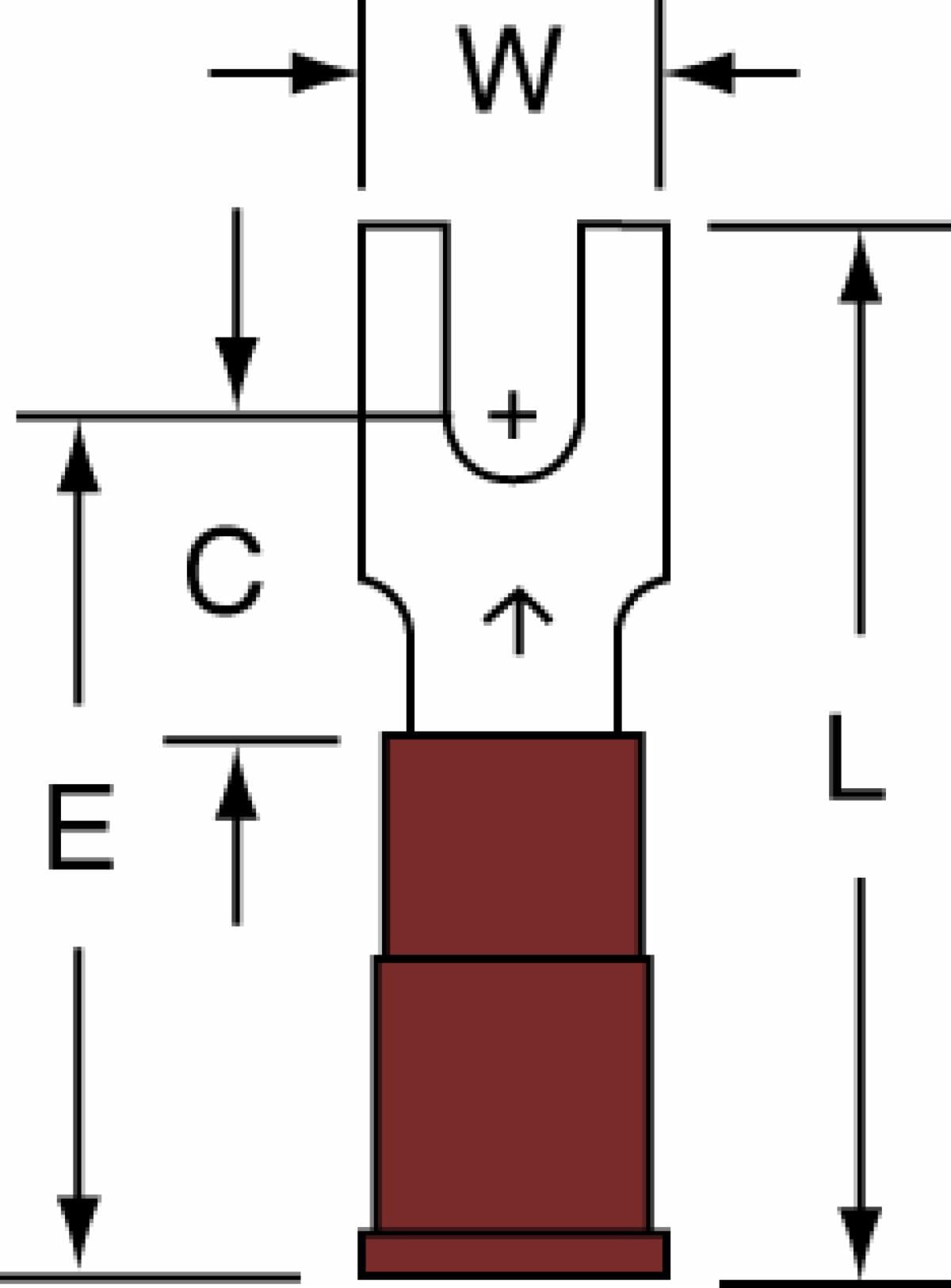

3M Scotchlok Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M Block Fork Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Block Fork Terminal Nylon with Insulation Grip Butted Seam 12-10 AWG, visit the official 3M website.
| Pieces Per Case | 10 |
|---|---|
| Unit of Measure | Case |
| Product Id | 7010397429 |
| Part Number | 3MABR-95367 |
| UPC | 00054007953678 |
| Weight | 2.403 lbs |
| Make to Order | Yes |
| Brand | Scotchlok™ |
| Maximum Conductor Size | 10 AWG, 5.26 mm² |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Fork Type | Block |
| Insulation Material | Nylon with Insulation Grip |
| Terminal Style | Block |
| Terminal Type | Fork |
| Dimensions | 5.3 × 5.2 × 4.8 in |
