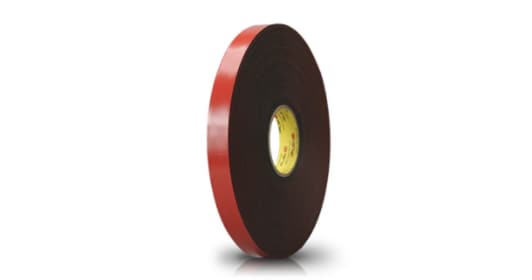

3M™ VHB™ Structural Glazing Tape B23F, Black, 7/8 in x 36 yd, 12 Rolls/Case, Restricted

• Fast and easy-to-use permanent bonding method provides high strength and long-term durability
• Virtually invisible fastening keeps surfaces smooth
• Used as an alternative to structural silicone and spacer tapes/gaskets
• Black, 0.090 in. (2.3 mm), multi-purpose adhesive and conformable acrylic foam core offers a good balance of strength and conformability
• Creates a permanent seal against water, moisture and more
• Pressure sensitive adhesive bonds on contact to provide immediate handling strength
• Also available in gray with 3M™ VHB™ Structural Glazing Tape G23F
• UL GREENGUARD and UL GREENGUARD Gold Certified, contributing to LEED Credit

Dream, Design, Deliver with 3M™ VHB™ Structural Glazing Tape B23F. It is a black, 0.090 in. (2.3 mm), multi-purpose acrylic adhesive with a conformable foam core and film liner. It is commonly used for structural glazing. The fast and easy to use permanent bonding method provides high strength and long-term durability.

Convenience Meets Extreme Bonding Power
3M™ VHB™ Structural Glazing Tape B23F consists of a durable acrylic adhesive with viscoelastic properties. This provides an extraordinarily strong double sided foam tape that adheres to a range of substrates, including aluminum, painted aluminum and glass. 3M’s bonding tapes provide excellent strength, conformability, surface adhesion and temperature resistance. The 3M™ VHB™ Structural Glazing Tape family is used to attach glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems replacing commonly used mechanical fasteners, gaskets and structural silicone sealants.

Recommended Applications

• Attach glass panels to metal frames (structural glazing)

Dream, Design, Deliver with 3M™ VHB™ Structural Glazing Tapes
3M™ VHB™ Structural Glazing Tapes utilize multi-purpose acrylic adhesive on both sides of a conformable, foam core. They are specifically designed for good adhesion to aluminum, painted aluminum, glass and other medium to high surface energy materials. Applications for these tapes include glazing and as an alternative to structural silicone and spacer tapes/gaskets.

An Unconventional Foam Tape
3M™ VHB™ Tapes were invented in 1980 as the first of their kind. These unique tapes combine conformability with a strong, permanent bond. The result is a family of extraordinarily strong tapes that adhere to a broad range of substrates. 3M™ VHB™ Tape is a proven alternative to screws, rivets, welds and other forms of mechanical fasteners. Skyscrapers, cell phones, electronic highway signs, refrigerators, architectural windows and more all rely on this specialty bonding tape for one or more steps in the assembly, mounting, fastening and sealing process. This trusted and reliable tape offers a consistent bond, outstanding durability and excellent solvent and moisture resistance. 3M stands by all of its products and is there to provide you with design guidance and technical support when you need it.

Proven Reliability from 3M™ VHB™ Tapes
3M™ VHB™ Tape offers a durable bond in a way that mechanical fasteners can’t. This tape enhances the appearance of finished goods by eliminating rivets and screws while providing immediate handling strength. In most cases, fastening with 3M™ VHB™ Tape is a quicker process than drilling, fastening, or using liquid adhesive. Our versatile line of tapes can be used indoors or outdoors in a variety of applications, including window, door and sign assembly, electronics, construction and countless other industrial applications. Chemically resistant as well as UV and temperature stable, 3M™ VHB™ Tape can withstand the heat of Dubai to the cold of Canada. The unique acrylic chemistry is extremely durable and resistant to change over time, making this a long-lasting and powerful tape you can trust.
