Product Description
Advantages of 3M™ Scotchlok™ Pin MNG18-47PX-A
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Provides quick connection for set screws or clamps that are used to make electrical contact
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M™ Scotchlok™ Pin MNG18-47PX-A ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Pin MNG18-47PX-A is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 2 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Style | Insulation grip |
| Brand | |
| Color | |
| Connection Width | 0.075 in |
| Insulation Color | Red |
| Insulation Material | Nylon |
| Material | |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.17 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 V to 1000 V |
| Minimum Conductor Size | 22 AWG |
| Operating Temperature Range (celsius) | |
| Operating Temperature Range (fahrenheit) | |
| Overall Length | |

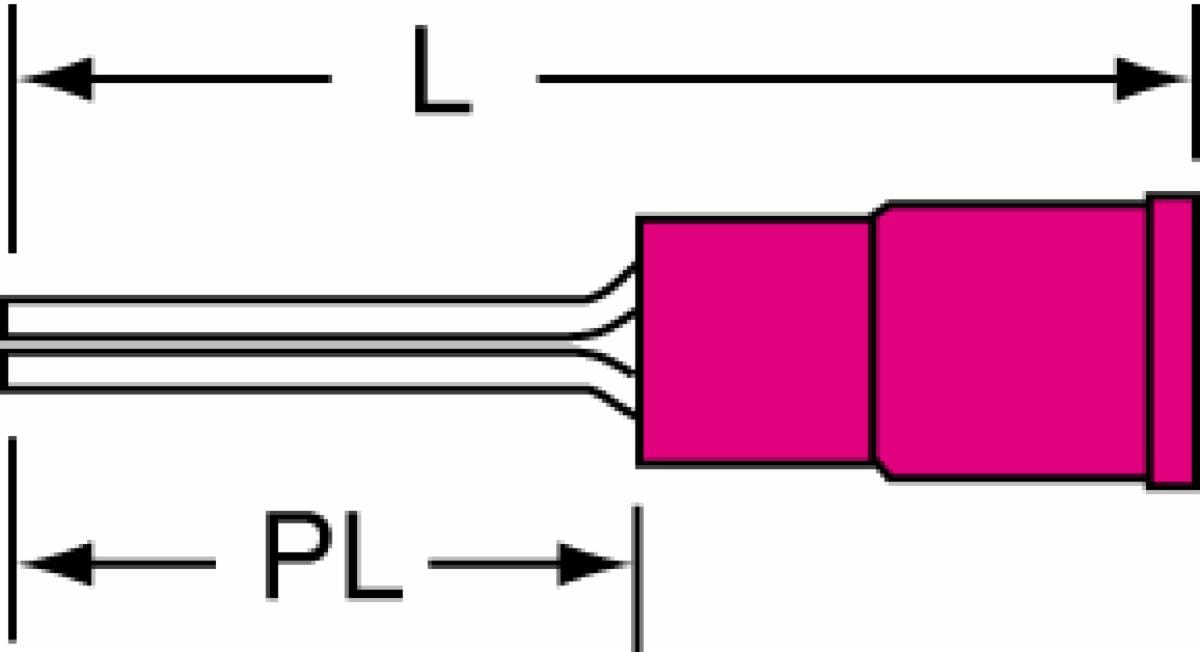

| Pin Length (PL) | 0.47 in |
| Ring Type | Standard |
| Terminal Type | Pin |
| UL File Number | E23438 |
