Product Description

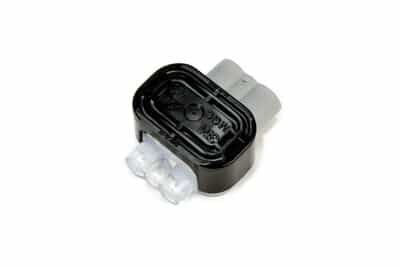

Advantages of 3M™ Scotchlok™ Moisture Guard Connector
- Grease protects against moisture
- Suitable for applications requiring moisture and UV protection
- Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
- C UL Listed and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Moisture Guard Connector offers a convenient solution to connect wires for landscape irrigation and lighting applications. The mineral oil-based grease inside the connector safeguards against moisture.
3M™ Scotchlok™ Moisture Guard Connector is ideal for applications requiring moisture and UV protection. The connector housing is weather resistant for above ground applications. The connector has a weather resistant polycarbonate body and withstands temperatures up to 221 degrees F (105 degrees C). It is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. C UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 7.4 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Conductor Sizes | 12 AWG (stranded) |
| Connection Type | Moisture guard |
| Connector Style | Insulation displacement |
| Flame Retardant | UL-94 V-2 |
| Grease Filling Against Corrosion | No |
| Insulation Material | Polycarbonate |
| Interrupt Free Shifting | No |
| Material | |
| Maximum Conductor Size | 12 AWG (stranded) |
| Maximum Insulation Diameter (Inside Port) | 0.15 in |
| Maximum Insulation Diameter (Outside Port) | 0.21 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Voltage Rating | 600 V |
| Minimum Conductor Size | 18 AWG |
| Moisture Resistance | |
| UL File Number | E23438 |
| Type | |
| Wire Connector Type | IDC connectors |
