Product Description

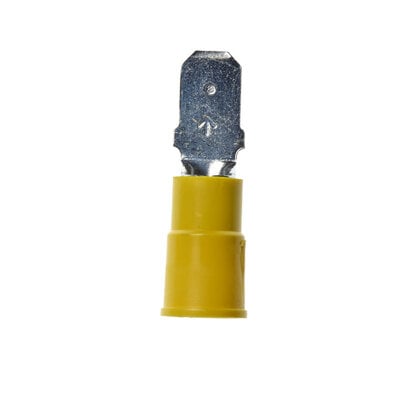

Advantages of 3M™ Scotchlok™ Male Disconnect MVU10-250DMK
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- This male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Male Disconnect MVU10-250DMK has a wire range of 22-18 AWG and has case quantities of 500 per case.
3M™ Scotchlok™ Male Disconnect MVU10-250DMK disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.15 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Color | |
| Connection Width | 0.25 in |
| CSA File Number | LR22190 |
| Disconnect Type | Male |
| Fastener Type | Male |
| Insulation Color | Yellow |
| Insulation Material | Vinyl |
| Make to Order | |
| Male Tab Width | 0.25 in |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Overall Length | |
| Pad Width | 0.25 in |
| Tab Width | 0.25 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
