Product Description

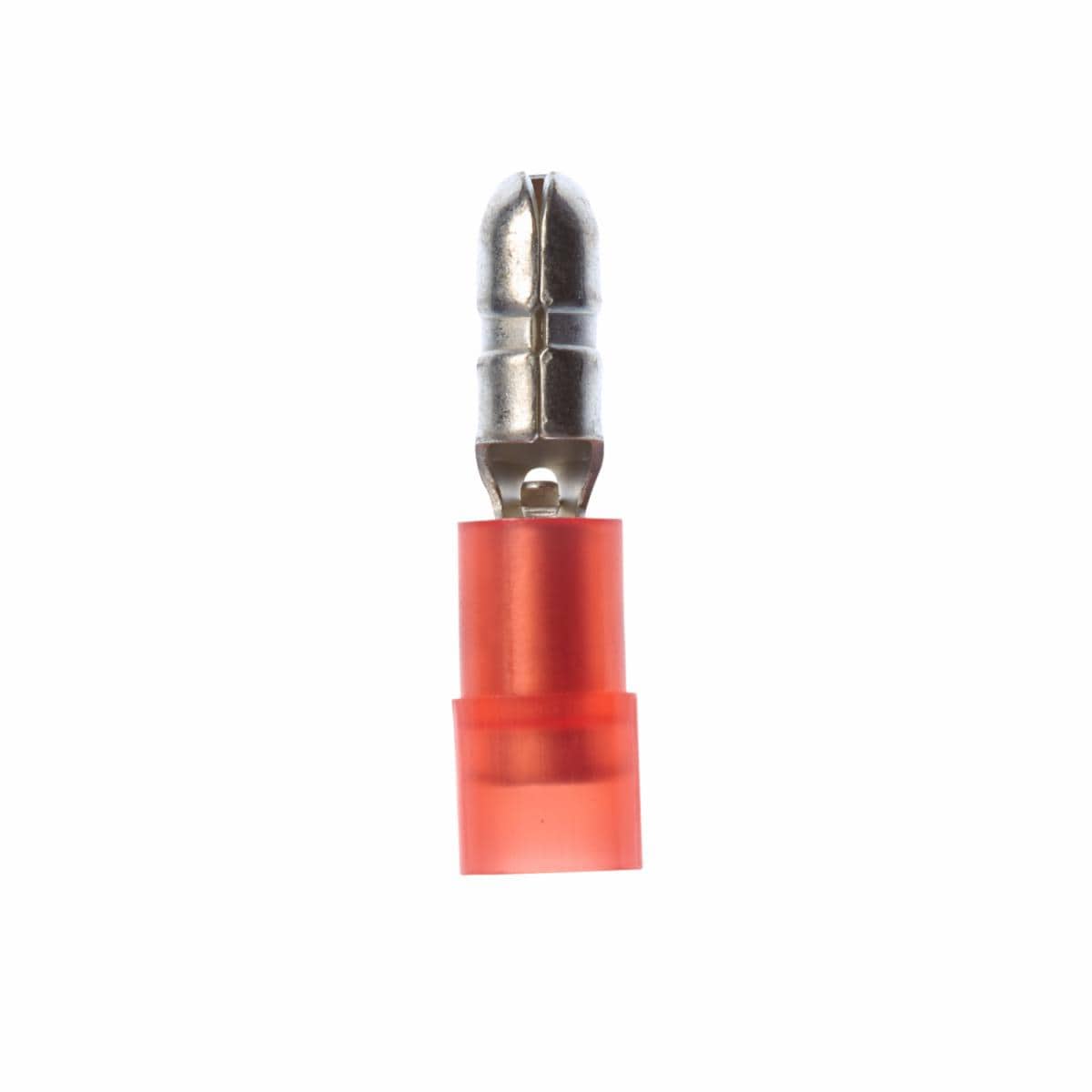

Advantages of 3M™ Scotchlok™ Male Disconnect MNG18-156DMK-A
- Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Suitable for use in a terminal block
- Electrolytic copper construction offers good conductivity
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Male Disconnect MNG18-156DMK-A ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Male Disconnect MNG18-156DMK-A withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 2.847 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.07 in |
| Barrel Length | 0.19 in |
| Barrel Style | Insulation grip |
| Brand | |
| Color | |
| Connection Width | 0.156 in |
| CSA File Number | LR22190 |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| Insulation Material | Nylon |
| Make to Order | |
| Mating Snap Diameter (S) | 0.156 in |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.15 in |
| Minimum Conductor Size | 22 AWG |
| Overall Length | |
| Pad Width | 0.156 in |
| Tap Width | 0.250 |
| Terminal Style | Bullet snap plug |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
