Product Description

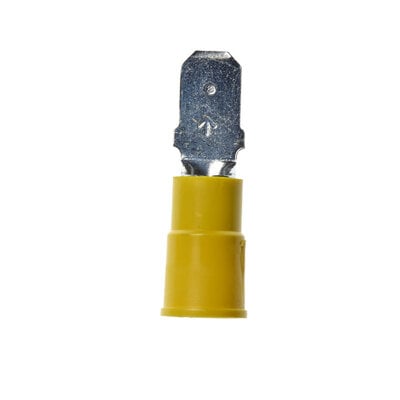

Advantages of 3M™ Scotchlok™ Male Disconnect MNG10-250DMX
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Wider tongue design for use on free-standing studs
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Male Disconnect MNG10-250DMX has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Male Disconnect MNG10-250DMX withstands a maximum temperature of 347 degrees F (175 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.15 in |
| Barrel Style | Insulation grip |
| Brand | |
| Color | |
| Connection Width | 0.25 in |
| CSA File Number | LR22190 |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Make to Order | |
| Male Tab Width | 0.187 in |
| Material | |
| Maximum Conductor Size | 10 AWG |
| Maximum Insulation Outer Diameter | 0.25 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AWG |
| Overall Diameter | 0.39 in |
| Overall Length | |
| Pad Width | 0.25 in |
| Tab Width | 0.25 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Voltage Application | Low voltage |
