Product Description
Advantages of 3M™ Scotchlok™ Male Disconnect MNG10-250DMIX
- This male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

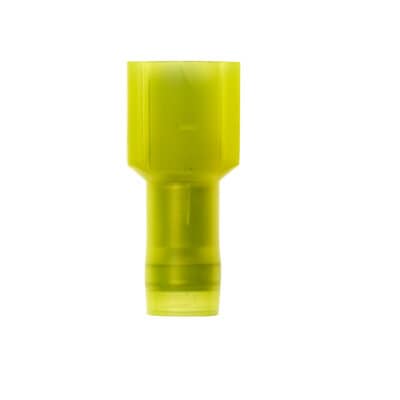

3M™ Scotchlok™ Male Disconnect MNG10-250DMIX offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Male Disconnect MNG10-250DMIX attaches to the mating part with a tongue that slips over the female tab. This terminal has a butted-seam barrel which is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Color | |
| Connection Width | 0.25 in |
| CSA File Number | LR22190 |
| Diameter | |
| Disconnect Type | Male |
| Fastener Type | Male |
| Insulation Color | Yellow |
| Insulation Material | Nylon with insulation grip |
| Make to Order | |
| Male Tab Width | 0.25 in |
| Material | |
| Maximum Conductor Size | 10 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AWG |
| Overall Diameter | 0.39 in |
| Overall Length | |
| Overall Width | 0.47 in |
| Pad Width | 0.25 in |
| Tab Width | 0.187 |
| Terminal Style | Fully insulated |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Voltage Application | Low voltage |
