Product Description
Advantages of 3M™ Scotchlok™ Locking Fork MU18-4FLK

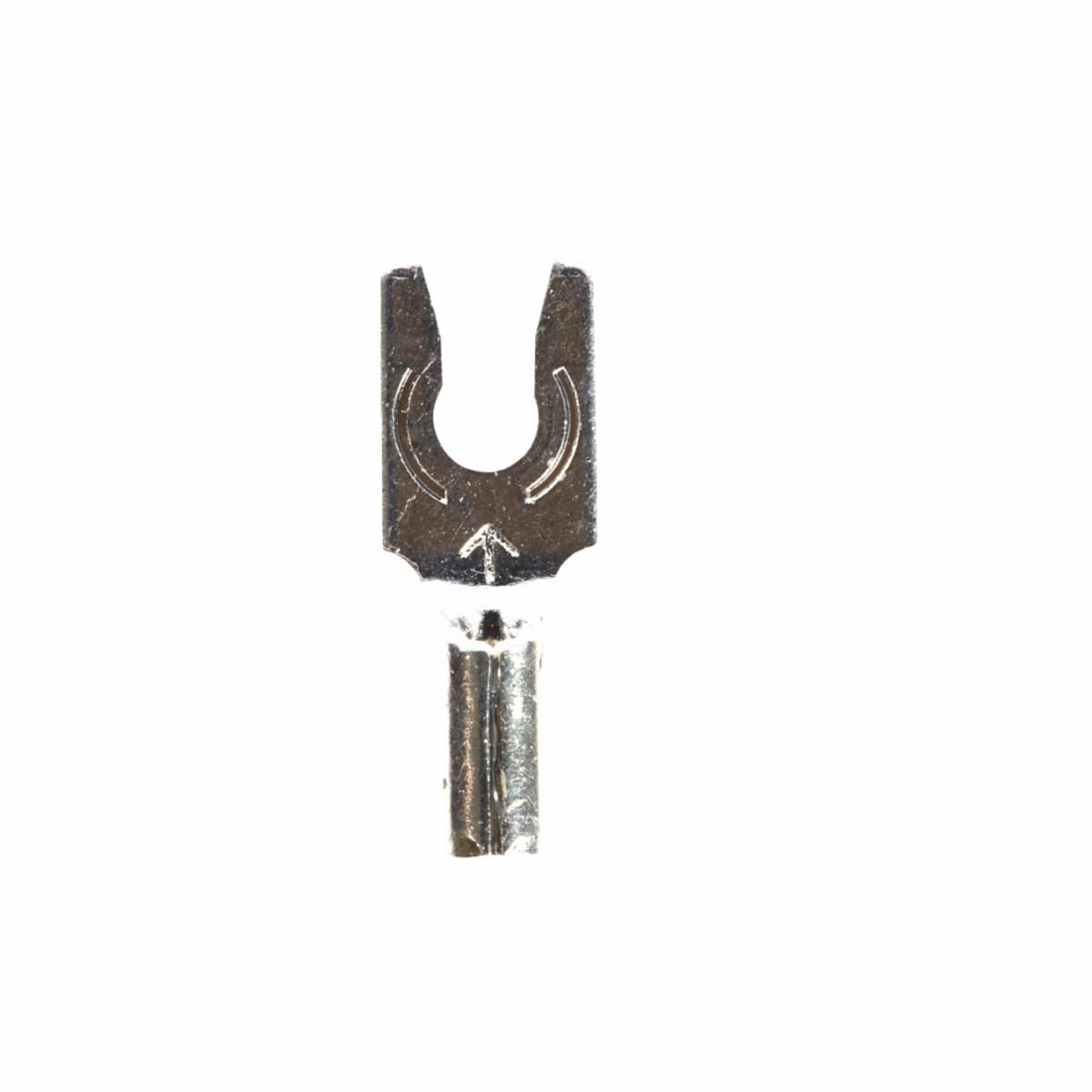

3M™ Scotchlok™ Locking Fork MU18-4FLK is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Locking Fork MU18-4FLK has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 1.447 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.07 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Clearance (C) | 0.25 in |
| CSA File Number | LR22190 |
| Dimension E | 0.5 in |
| Fork Type | Locking |
| Insulation Material | Non-insulated |
| Make to Order | |
| Maximum Conductor Size | 18 AWG |
| Maximum Lock Width | 0.27 in |
| Minimum Conductor Size | 22 AWG |
| Overall Length | |
| Overall Width | 0.25 in |
| Stud Diameter | 0.112 in |
| Stud Size | #4 |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
