Product Description

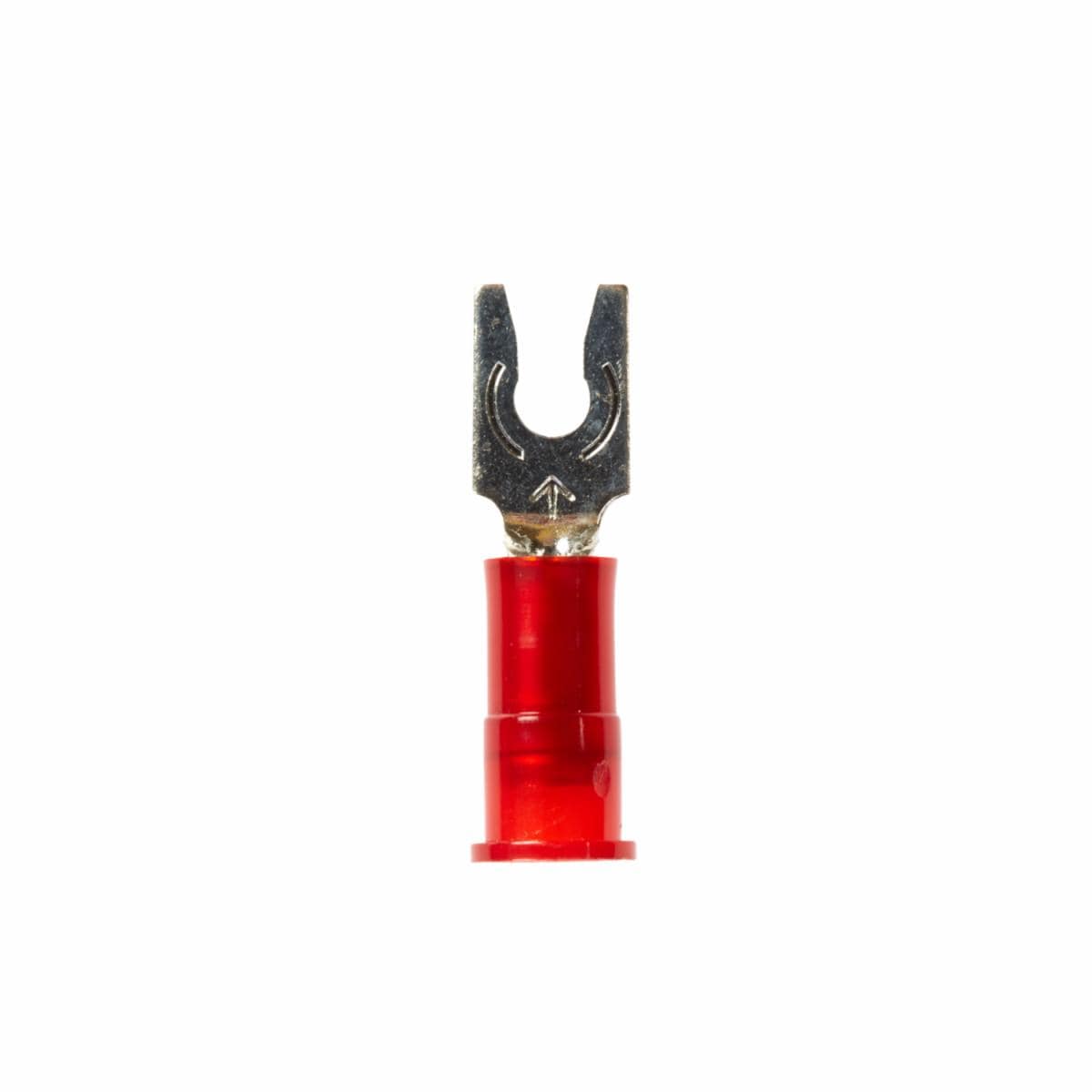

Advantages of 3M™ Scotchlok™ Locking Fork MNG18-6FLK
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Locking Fork MNG18-6FLK has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Locking Fork MNG18-6FLK is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 2.288 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.07 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Clearance (C) | 0.25 in |
| Color | |
| Dimension E | 0.69 in |
| Fork Type | Locking |
| Insulation Material | Nylon with insulation grip |
| Make to Order | |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Lock Width | 0.17 in |
| Minimum Conductor Size | 22 AWG |
| Overall Length | |
| Overall Width | 0.25 in |
| Stud Diameter | 0.138 in |
| Stud Size | #6 |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
