Product Description
Advantages of 3M™ Scotchlok™ Locking Fork MH14-6FLX
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Withstands a maximum temperature of 221 degrees F (105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires

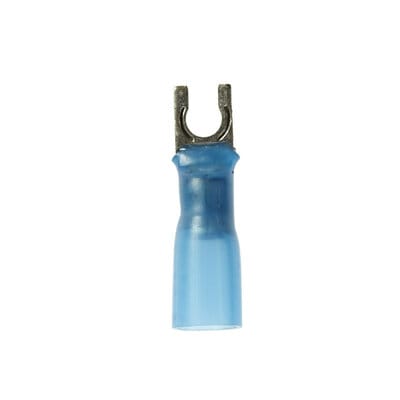

3M™ Scotchlok™ Locking Fork MH14-6FLX has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Locking Fork MH14-6FLX is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 0.741 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.09 in |
| Barrel Style | Brazed |
| Brand | |
| Clearance (C) | 0.12 in |
| Color | |
| CSA File Number | LR22190 |
| Dimension E | 0.76 in |
| Fork Type | Locking |
| Insulation Material | Heat shrink |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 16 AWG |
| Overall Length | |
| Overall Width | 0.25 in |
| Stud Size | #6 |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
