Product Description
Advantages of 3M™ Scotchlok™ Locking Fork M10-14FLK
- Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

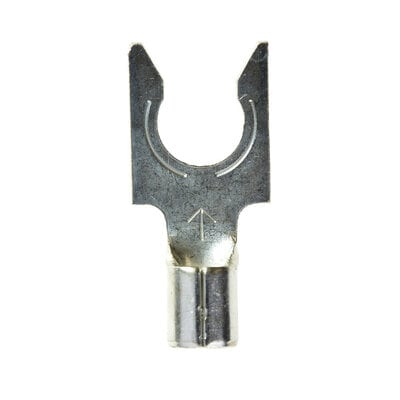

3M™ Scotchlok™ Locking Fork M10-14FLK is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Locking Fork M10-14FLK has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 2.114 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.135 in |
| Barrel Length | 0.25 in |
| Barrel Style | Brazed |
| Brand | |
| Clearance (C) | 0.44 in |
| CSA File Number | LR22190 |
| Dimension E | 0.69 in |
| Fork Type | Locking |
| Insulation Material | Non-insulated |
| Make to Order | |
| Maximum Conductor Size | 10 AWG |
| Maximum Lock Width | 0.48 in |
| Minimum Conductor Size | 12 AWG |
| Overall Length | |
| Overall Width | 0.43 in |
| Stud Diameter | 0.25 in |
| Stud Size | 1/4 in |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
