Product Description

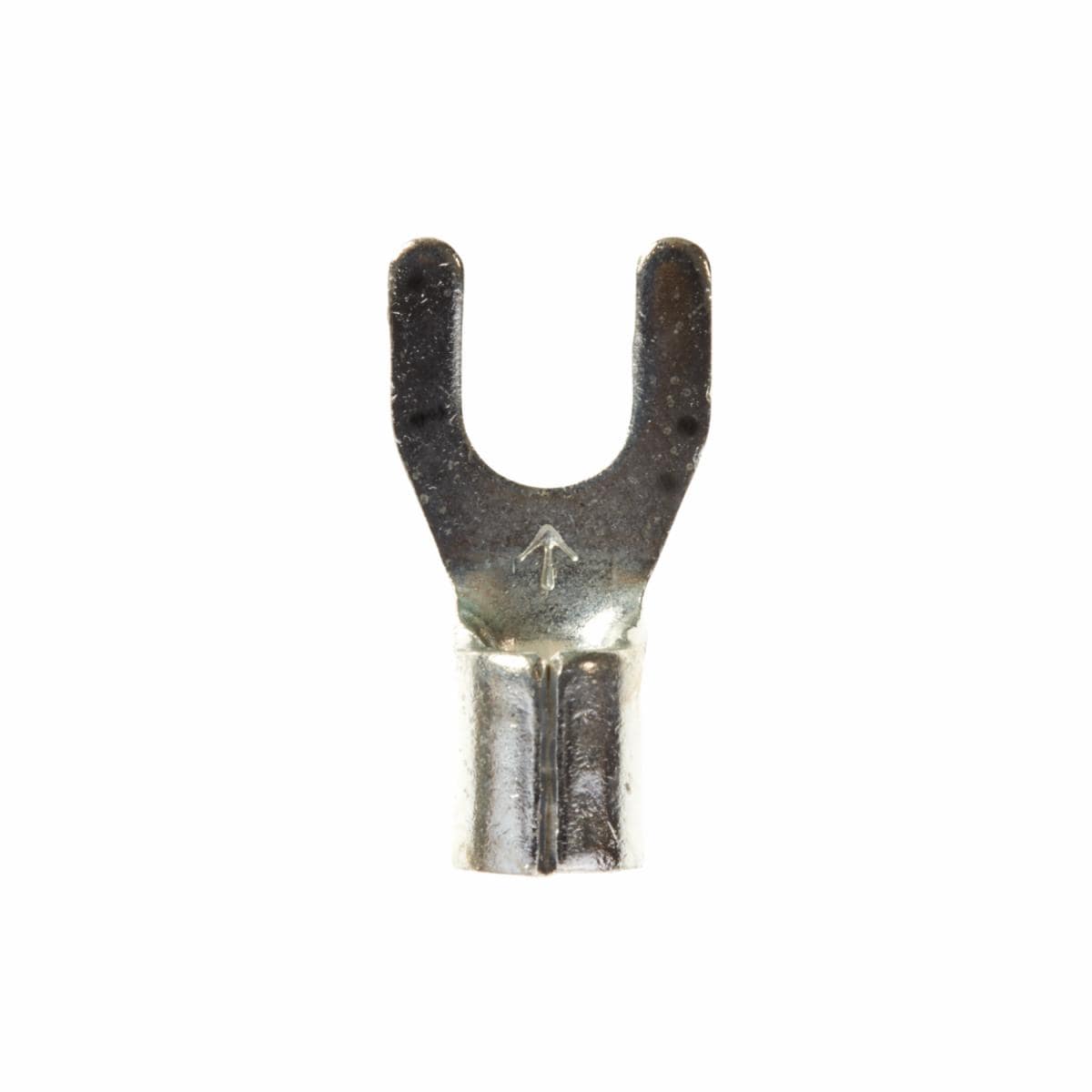

Advantages of 3M™ Scotchlok™ Fork MU10-10FK
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Wider-tongue design for use on free-standing studs
3M™ Scotchlok™ Fork MU10-10FK is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Fork MU10-10FK has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 0.751 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.135 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Clearance (C) | 0.29 in |
| CSA File Number | LR22190 |
| Dimension E | 0.54 in |
| Fork Type | Standard |
| Insulation Material | Non-insulated |
| Make to Order | |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Overall Length | |
| Overall Width | 0.38 in |
| Stud Size | #10 |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
