Product Description
Advantages of 3M™ Scotchlok™ Female Self-Stripping Disconnect
- Nylon-insulated connector electrically taps into a wire in mid-span without cutting

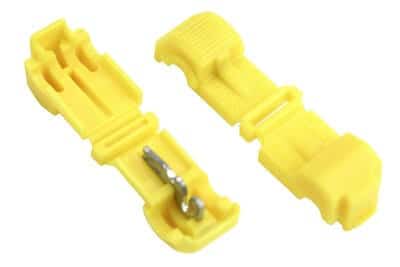

3M™ Scotchlok™ Female Self-Stripping Disconnect 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.
3M™ Scotchlok™ Female Self-Stripping Disconnect 951, 952 and 953 are 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. They withstand temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| Barrel Style | Insulated Self-stripping |
| Brand | |
| Conductor Width | 0.25 in |
| Color | |
| Connection Type | T-tap |
| Connector Style | Insulation displacement |
| CSA File Number | LR22190 |
| Fastener Orientation | Female |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | No |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Interrupt Free Shifting | No |
| Material | |
| Maximum Conductor Size | 12 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AWG |
| Pad Width | 0.25 in |
| Terminal Type | Disconnect |
| Type | |
| Wire Connector Type | IDC Connectors |
| UL File Number | E23438 |
