Product Description

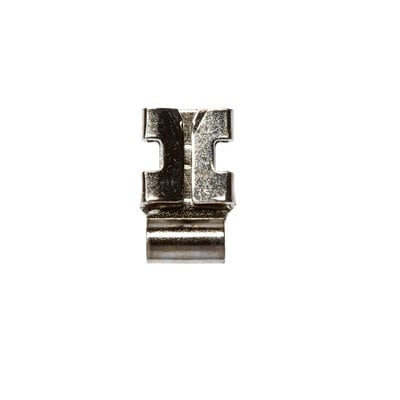

Advantages of 3M™ Scotchlok™ Female Disconnect MU14-250DFHT/FLAGK
- Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
- Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Female Disconnect MU14-250DFHT/FLAGK has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Female Disconnect MU14-250DFHT/FLAGK attaches to the mating part with a tongue that slips over the male tab. The terminal has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.095 in |
| Barrel Length | 0.26 in |
| Barrel Style | Butted |
| Brand | |
| Connection Width | 0.25 in |
| CSA File Number | LR22190 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Non-insulated |
| Make to Order | |
| Mates with Female Width | 0.25 in |
| Mates with Male Tab Width (W) | 0.25 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 16 AEG |
| Overall Length | |
| Pad Width | 0.25 in |
| Solution For | Wireless network infrastructure accessories |
| Tab Width | 0.25 |
| Terminal Style | High temp |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
