Product Description

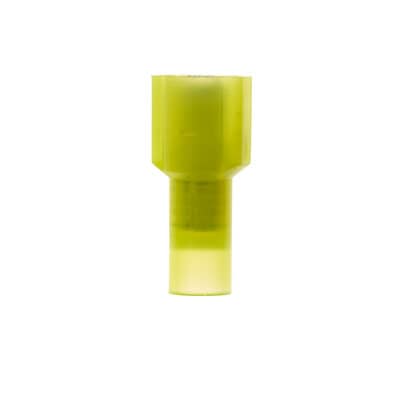

Advantages of 3M™ Scotchlok™ Female Disconnect MNU10-250DFIX
- Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide male tab
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Female Disconnect MNU10-250DFIX are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
3M™ Scotchlok™ Female Disconnect MNU10-250DFIX are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.128 in |
| Barrel Style | Butted |
| Brand | |
| Color | |
| Connection Type | Wire |
| Connection Width | 0.187 in |
| Connector/ Connector Tool | Connector |
| Connector Style | Insulation displacement |
| CSA File Number | LR22190 |
| Diameter | |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Flame Retardant | No |
| Fork Type | Standard fork |
| Grease Filling Against Corrosion | No |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Interrupt Free Shifting | No |
| Mates with Female Width | 0.25 in |
| Mates with Male Tab Width (W) | 0.25 in |
| Maximum Conductor Size | 10 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AWG |
| Overall Diameter | 0.99 in |
| Pad Width | 0.25 in |
| Solution For | Wireless network infrastructure accessories |
| Tab Width | 0.25 |
| Terminal Style | Fully insulated |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
