Product Description
Advantages of 3M™ Scotchlok™ Female Disconnect MNG18-180DFIK-A
- Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.156-in wide male tab
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 1000/case

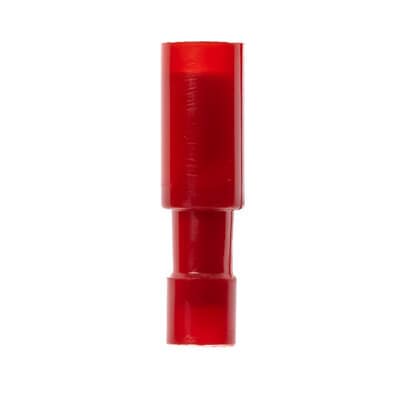

3M™ Scotchlok™ Female Disconnect MNG18-180DFIK-A has dents and rolled edges to offer superior holding force while allowing for easy disconnect. The snap plug has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Female Disconnect MNG18-180DFIK-A attaches to the mating part with a tongue that slips over the male tab. The snap plug features a butted-seam barrel and is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures positive grip and has a stepped design for mistake-proof crimping. RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.095 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Bullet Diameter | 0.156 |
| Color | |
| Connection Width | 0.18 in |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Color | Red |
| Insulation Material | Nylon with insulation grip |
| Make to Order | |
| Material | |
| Mating Snap Diameter | 0.18 in |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 22 AEG |
| Overall Length | |
| Pad Width | 0.18 in |
| Terminal Style | Bullet Snap Plug |
| Terminal Type | Disconnect |
| Voltage Application | Low voltage |
