Product Description

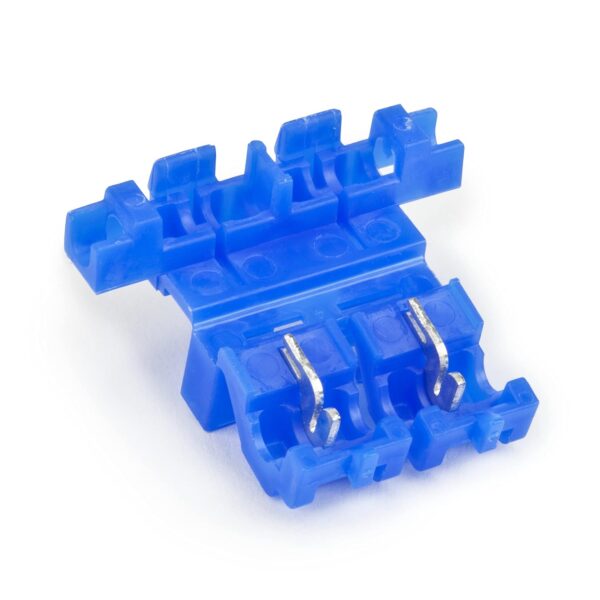

Advantages of 3M™ Scotchlok™ Female Disconnect 972-A
- Color-coded for quick and easy identification of the wire size
- Brass element construction for good conductivity and tin plating for corrosion resistance
- Withstands temperatures of 221 °F (105 °C)
- Made of insulated and self-stripping polypropylene
3M™ Scotchlok™ Female Disconnect 972-A is specifically designed to install a blade type automotive fuse between the power source and device. It has insulation that is manufactured from blue polypropylene, and operates efficiently up to 221 degrees F (105 degrees C).
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Conductor Sizes | 14 – 18 AWG |
| Color | |
| Connection Type | Wire |
| Connector/ Connector Tool | Connector |
| Connector Style | Insulation displacement |
| Diameter | |
| Fastener Orientation | Female |
| Flame Retardant | No |
| Grease Filling Against Corrosion | No |
| Insulation Color | Blue |
| Insulation Material | Polypropylene |
| Interrupt Free Shifting | No |
| Material | |
| Max. Number of Cores | 1 |
| Maximum Conductor Size | 14 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Moisture Resistant | No |
| Minimum Conductor Size | 18 AWG |
| Overall Diameter | 0.23 in |
| Overall Width | 0.37 in |
| Pad Width | 0.25 in |
| Run Maximum Insulation Outer Diameter | 0.145 in |
| Solution For | Wireless network infrastructure accessories |
| Tap Maximum Insulation Outer Diameter | 0.145 in |
| Terminal Type | Fuse |
| Type | |
| Wire Connector Type | IDC Connectors |
