Product Description

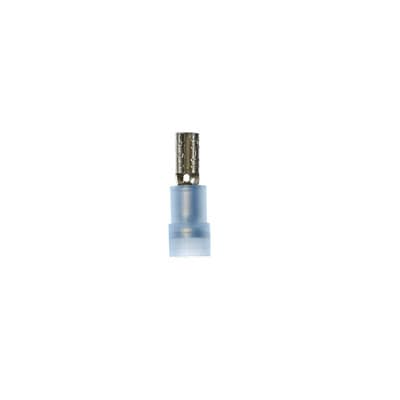

Advantages of 3M™ Scotchlok™ Female Disconnect
- Nylon-insulated, butted-seam barrel offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Female Disconnect has a wire range of 16-14 AWG and has case quantities of 500 per case.
3M™ Scotchlok™ Female Disconnect are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Connection Width | 0.11 in |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Nylon with insulation grip |
| Make to Order | |
| Mates with Female Width | 0.11 in |
| Mates with Male Tab Width | 0.11 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 16 AEG |
| Overall Length | |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
