Product Description
Advantages of 3M™ Scotchlok™ Electrical IDC 901-POUCH
- Black, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting.
- Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
- Accommodates 18 to 14 AWG solid/stranded (tap) and 12 to 10 AWG solid/stranded (run)
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

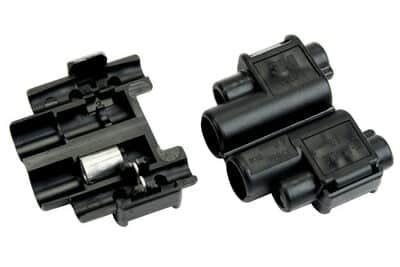

3M™ Scotchlok™ Electrical IDC 901-POUCH is an Inline Bullet Receptacle that electrically connects to a run wire mid span and allows for a tap wire to be connected with a 0.156″ male bullet without cutting or stripping the wire.
3M™ Scotchlok™ Electrical IDC 901-POUCH is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. The connector insulation is manufactured from polypropylene. It is 32V rated and withstands temperatures of 194 degrees F (90 degrees C). RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, Ohio, JAM Industrial Supply, LLC has been a 3M Strategic Distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery, and prices to our customers.
Additional information
| Weight | 2.65 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Part Number | |
| Brand | |
| Color | |
| Conductor Sizes | 14 AWG (Stranded) |
| Connection Type | Run and tap |
| Connector/ Connector Tool | 3M Crimping Tool E-9BM and/or Mechanics (slip joint) Pliers |
| Connector Style | Insulation displacement |
| Flame Retardant | No |
| Grease Filling Against Corrosion | No |
| Insulation Color | Black |
| Insulation Material | Polypropylene |
| Insulation Outer Diameter | 0.145 in |
| Material | |
| Max. Number of Cores | 1 |
| Maximum Conductor Size | 14 AWG (Stranded) |
| Maximum Operating Temperature | 90 degrees C |
| Maximum Recommended Voltage Rating | 32 V |
| Minimum Conductor Size | 18 AWG |
| Moisture Resistance | |
| Recommended Crimping Tool | E-9BM and/or Mechanics (slip joint) Pliers |
| Run Maximum Insulation Outer Diameter | 0.145 in |
| Tap Maximum Insulation Outer Diameter | 0.145 in |
| Voltage Application | Low voltage |
| Type | |
| Wire Connector Type | IDC connectors |
