Product Description
Advantages of 3M™ Scotchlok™ Electrical IDC 560-BULK
- Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
- Helps provide a moisture-resistant seal
- Accommodates 22 to 14 AWG solid/stranded
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

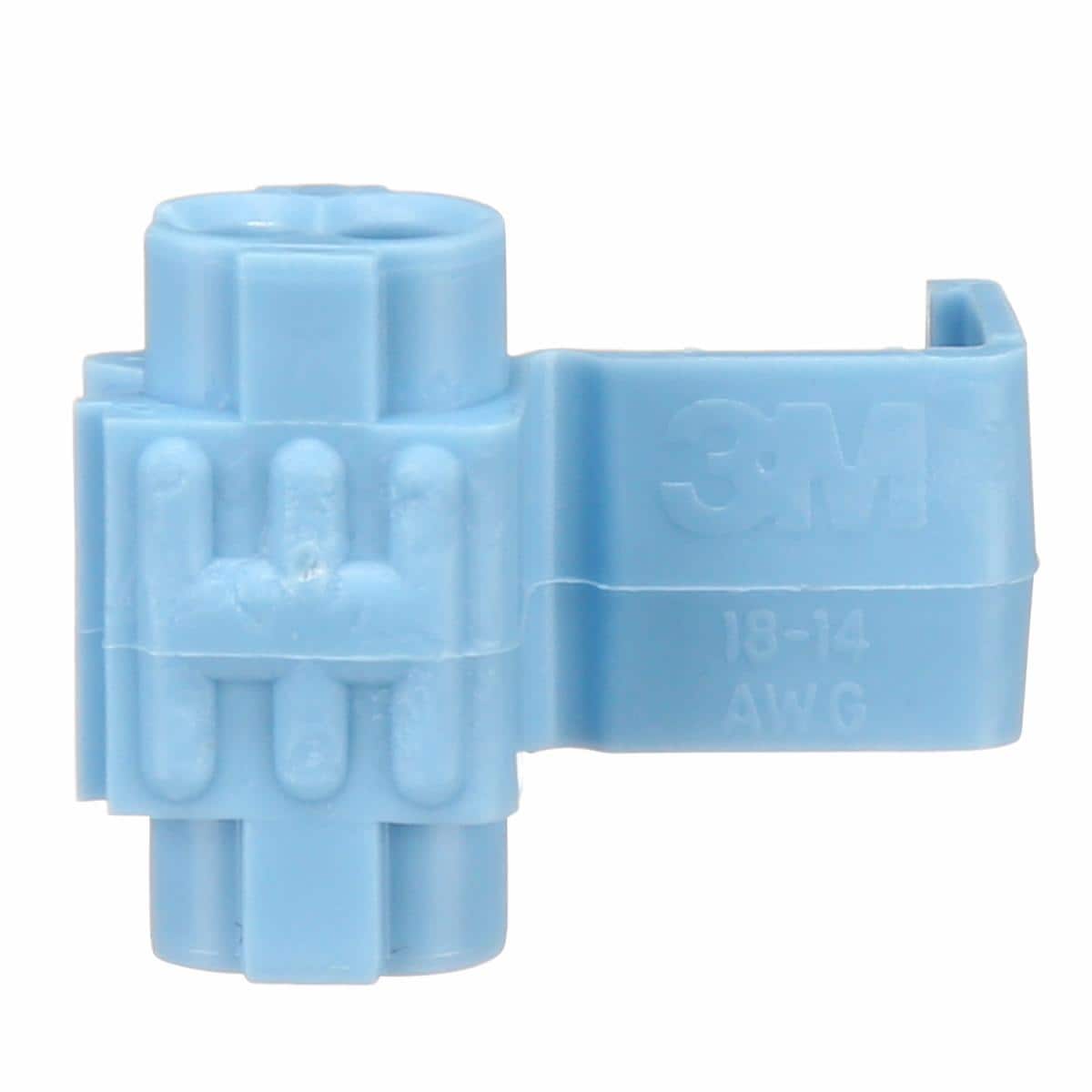

3M™ Scotchlok™ Electrical IDC 560-BULK is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self-stripping and flame retardant.
3M™ Scotchlok™ Electrical IDC 560-BULKis 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 17.8 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 14 AWG (Stranded) 16 AWG 18 AWG |
| Connector Type | Double run or tap |
| Connector Style | Insulation displacement |
| Connector/ Connector Tool | 3M Crimping Tool E-9BM and/or 9" Lineman's Pliers |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | No |
| Insulation Color | Blue |
| Insulation Material | Polypropelyne |
| Interrupt Free Shifting | No |
| Material | |
| Max. Number of Cores | 2 |
| Maximum Conductor Sizes | 14 AWG (Stranded) 16 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Sizes | 18 AWG |
| Moisture Resistant | No |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Run Maximum Insulation Outer Diameter | 0.145 in |
| Tap Maximum Insulation Outer Diameter | 0.145 in |
| Type | |
| Voltage Application | Low voltage |
| Wire Connector Type | IDC connector |
