Product Description

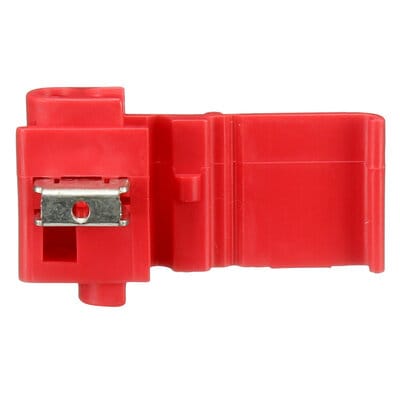

Advantages of 3M™ Scotchlok™ Electrical Idc 558-Pouch
- Red, polypropylene-insulated connector
- Suitable for general purpose electrical connections on an auto, boat, van or trailer
- Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Electrical Idc 558-Pouch electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self-stripping.
3M™ Scotchlok™ Electrical Idc 558-Pouch is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. It is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. The connector withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 4.45 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 16 AWG |
| Connection Type | Run & tap |
| Connector/ Connector Tool | 3M Crimping Tool E-9BM and/or 9" Lineman's Pliers |
| Connector Style | Insulation displacement |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | No |
| Insulation Color | Red |
| Insulation Material | Polypropylene |
| Insulation Outer Diameter | 0.12 in |
| Interrupt Free Shifting | No |
| Material | |
| Max. Number of Cores | 2 |
| Maximum Conductor Sizes | 16 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Sizes | 22 AWG |
| Moisture Resistant | No |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Run Maximum Insulation Outer Diameter | 0.12 in |
| Tap Maximum Insulation Outer Diameter | 0.12 in |
| Type | |
| Voltage Application | Low voltage |
| Wire Connector Type | IDC connector |
