Product Description

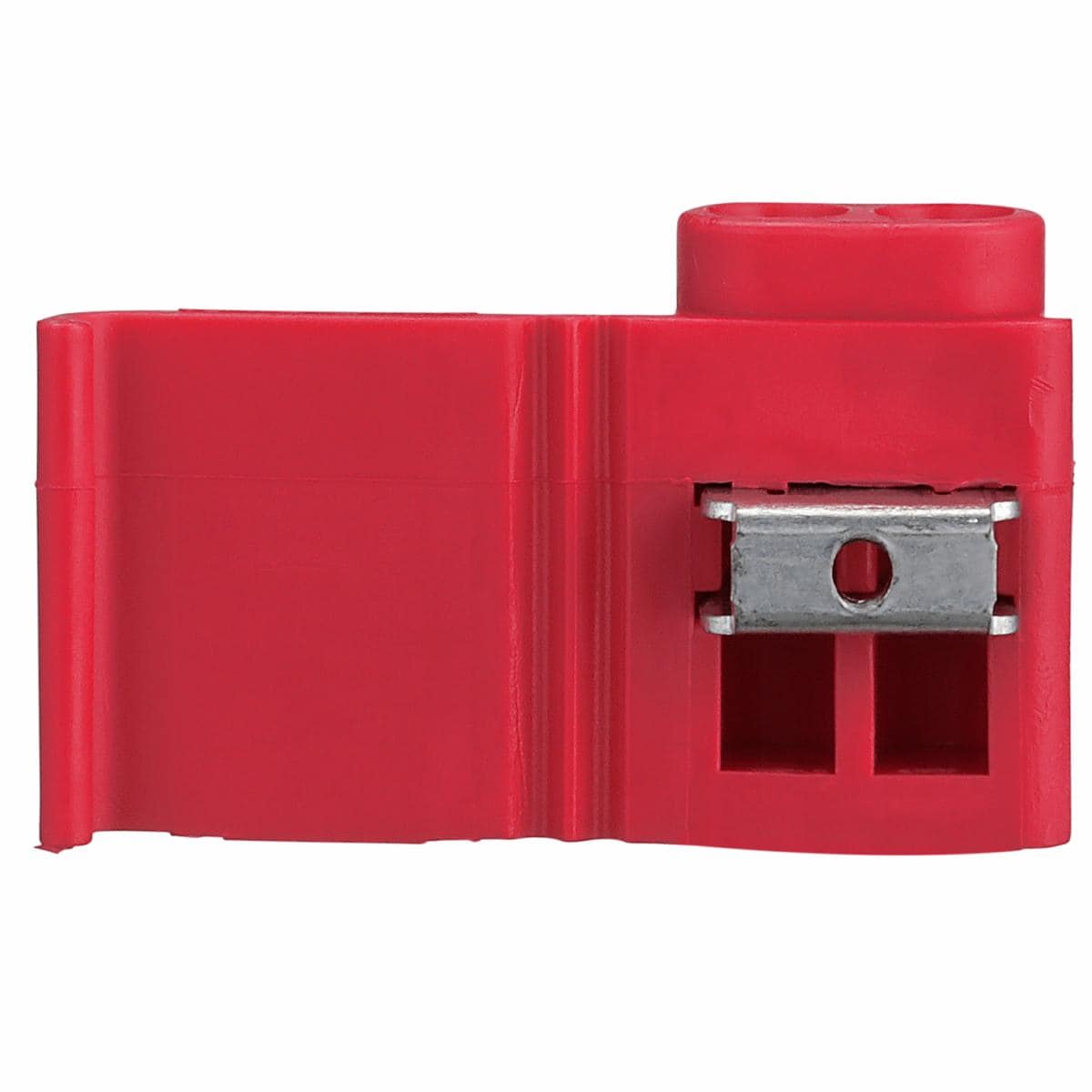

Advantages of 3M™ Scotchlok™ Electrical Idc 557-Pouch
- intended for use with common thermoplastic insulated wire such as: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE GPT with a maximum insulation diameter of 3,5 mm
- Accommodates 22 to 16 AWG solid/stranded
- UL Listed and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Electrical Idc 557-Pouch provides a dual element connection. The connector is polypropylene insulated and used to connect 2 wires while insulating the connection. It is self-stripping and flame retardant.
3M™ Scotchlok™ Electrical Idc 557-Pouch is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 4.26 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 16 AWG |
| Connection Type | Pigtail |
| Connector/ Connector Tool | 3M Crimping Tool E-9BM and/or 9" Lineman's Pliers |
| Connector Style | Insulation displacement |
| CSA File Number | LR15503 |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | No |
| Insulation Color | Red |
| Insulation Material | Polypropylene |
| Insulation Outer Diameter | 0.12 in |
| Interrupt Free Shifting | No |
| Material | |
| Maximum Conductor Sizes | 16 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Sizes | 22 AWG |
| Moisture Resistant | No |
| Recommended Crimping Tool | E-9BM |
| Run Maximum Insulation Outer Diameter | 0.12 in |
| Tap Maximum Insulation Outer Diameter | 0.12 in |
| Type | |
| UL File Number | E23438 |
| Voltage Application | Low voltage |
| Wire Connector Type | IDC connector |
