Product Description
Advantages of 3M™ Scotchlok™ Electrical IDC 314U-BIN
- White cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
- Accommodates a wire range of 1,5 – 2,5 mm2 solid or stranded

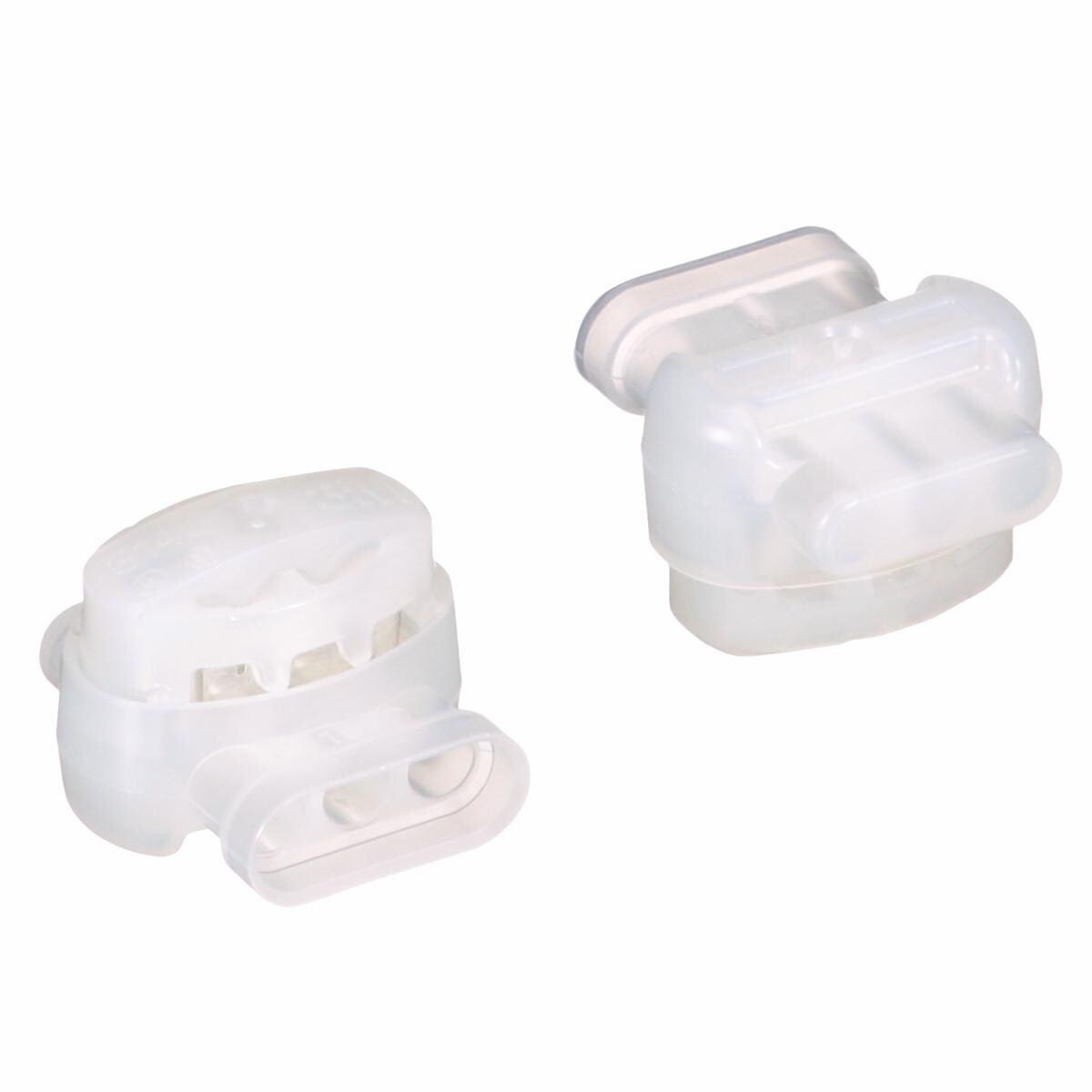

3M™ Scotchlok™ Electrical IDC 314U-BIN provides a dual element connection for dry environment applications. The connector is nylon insulated and used to connect 2 or 3 wires. It is self-stripping and flame retardant.
3M™ Scotchlok™ Electrical IDC 314U-BIN is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 7.9 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 22 AWG 14 AWG |
| Connector Type | Pigtail |
| Connector Style | Insulation displacement |
| CSA File Number | LR15503 |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | No |
| Insulation Color | White |
| Insulation Material | Nylon |
| Insulation Outer Diameter | 0.155 in |
| Interrupt Free Shifting | No |
| Material | |
| Maximum Conductor Size | 14 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 22 AWG |
| Moisture Resistant | No |
| Run Maximum Insulation Outer Diameter | 0.155 in |
| Tap Maximum Insulation Outer Diameter | 0.155 in |
| Type | |
| UL File Number | E23438 |
| Voltage Application | Low voltage |
| Wire Connector Type | IDC connector |
