Product Description

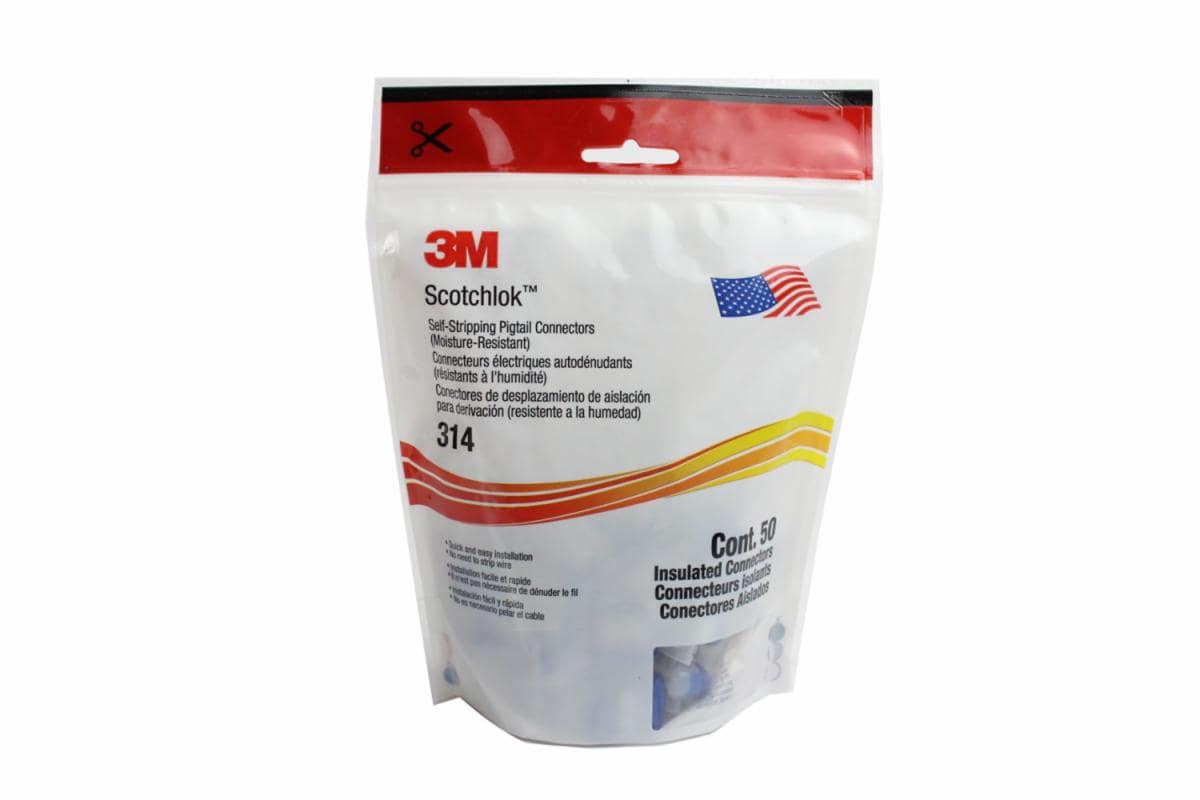

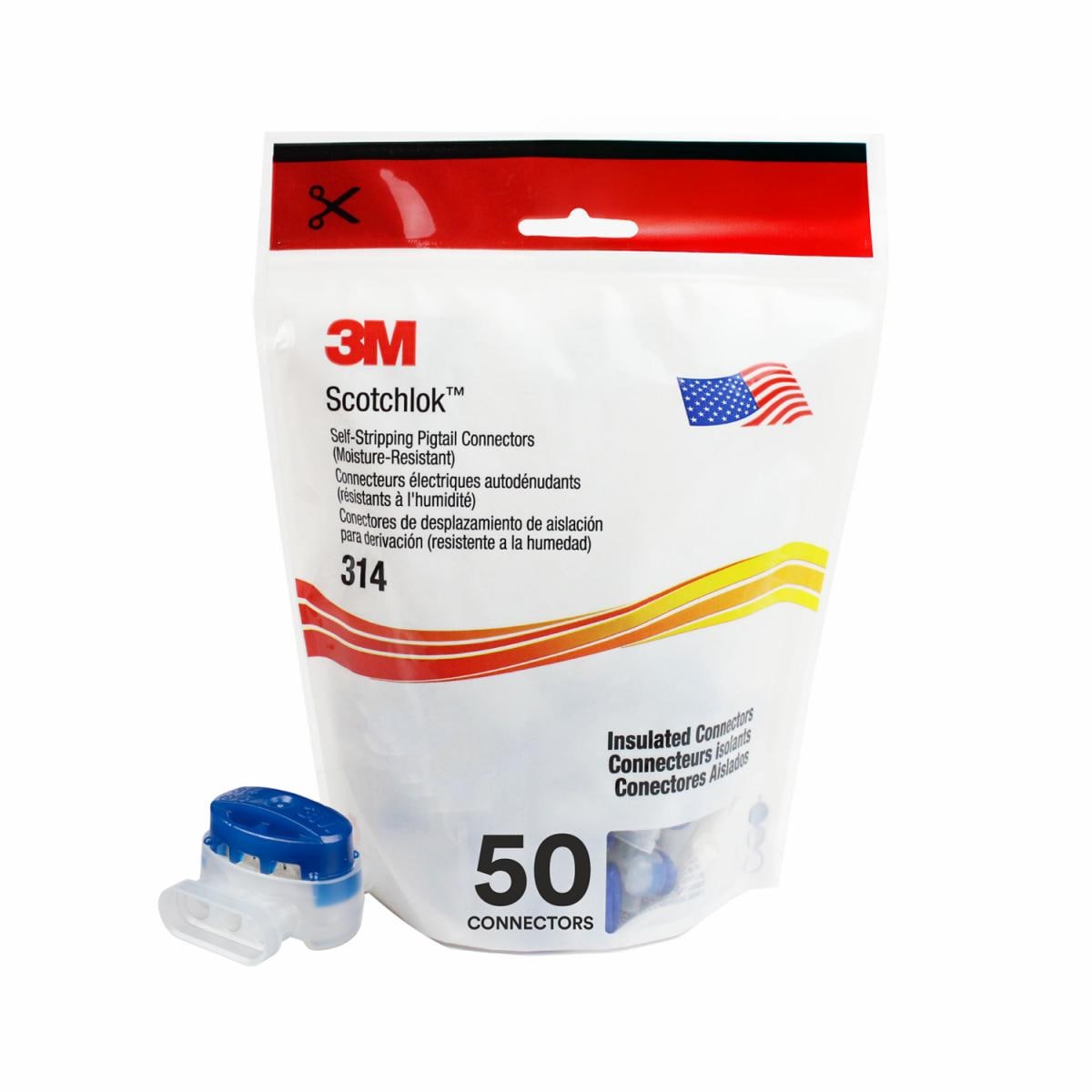

Advantages of 3M™ Scotchlok™ Electrical IDC 314-POUCH

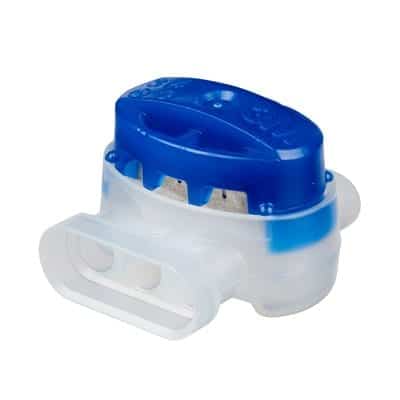

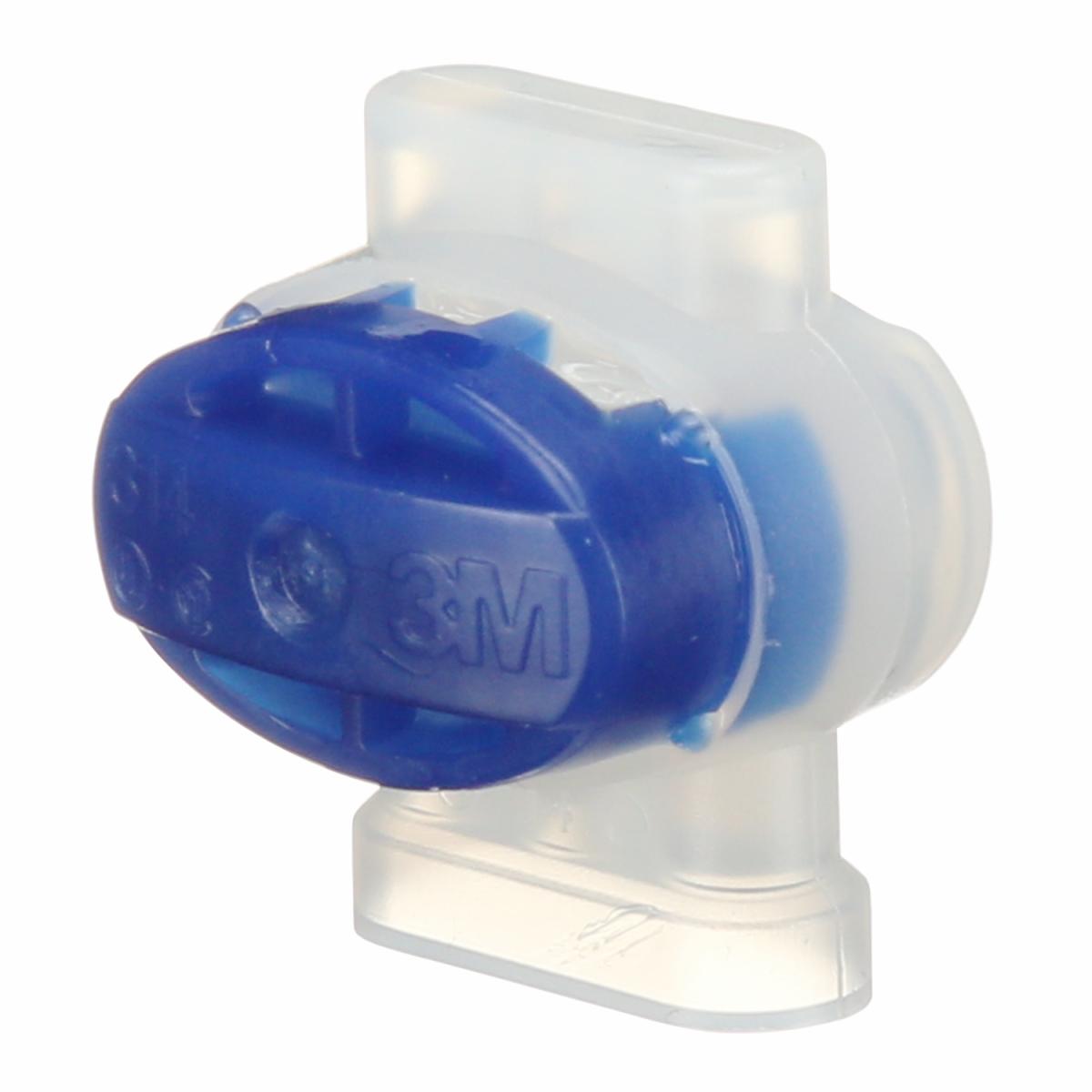

- Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
- Brass element construction for good conductivity and tin plating for corrosion resistance
- Accommodates 22 to 14 AWG solid/stranded
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Electrical IDC 314-POUCH provides a dual element connection and moisture resistant seal with a mineral oil-based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self-stripping, flame retardant and moisture resistant.
3M™ Scotchlok™ Electrical IDC 314-POUCH is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 5.46 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 14 AWG |
| Connector Type | Pigtail |
| Connector Style | Insulation displacement |
| CSA File Number | LR15503 |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | Yes |
| Insulation Color | Cap blue, Body white |
| Insulation Material | Nylon |
| Insulation Outer Diameter | 0.15 in |
| Interrupt Free Shifting | No |
| Material | |
| Max. Number of Cores | 3 |
| Maximum Conductor Size | 14 AWG |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 22 AWG |
| Moisture Resistant | Yes |
| Recommended Crimping Tool | E-9BM and/or Mechanics (slip joint) Pliers |
| Run Maximum Insulation Outer Diameter | 0.155 in |
| Tap Maximum Insulation Outer Diameter | 0.155 in |
| Type | |
| UL File Number | E23438 |
| Voltage Application | Low voltage |
| Wire Connector Type | IDC connector |
