Product Description
Advantages of 3M™ Scotchlok™ Block Fork MVU10-6FBK

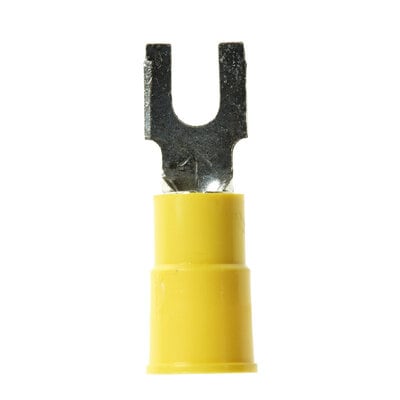

3M™ Scotchlok™ Block Fork MVU10-6FBK is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Block Fork MVU10-6FBK is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 2.103 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.135 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Clearance (C) | 0.29 in |
| Color | |
| CSA File Number | LR22190 |
| Dimension E | 0.84 in |
| Fork Type | Block |
| Insulation Material | Vinyl |
| Make to Order | |
| Maximum Conductor Size | 10 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AWG |
| Overall Length | |
| Overall Width | 0.32 in |
| Solution For | Wireless network: infrastructure accessories |
| Stud Diameter | 0.138 in |
| Stud Size | #6 |
| Terminal Style | Block |
| Terminal Type | Fork |
| UL File Number | E23438 |
