Product Description
Advantages of 3M™ Scotchlok™ Block Fork MU10-10FBK
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Suitable for use in a terminal block

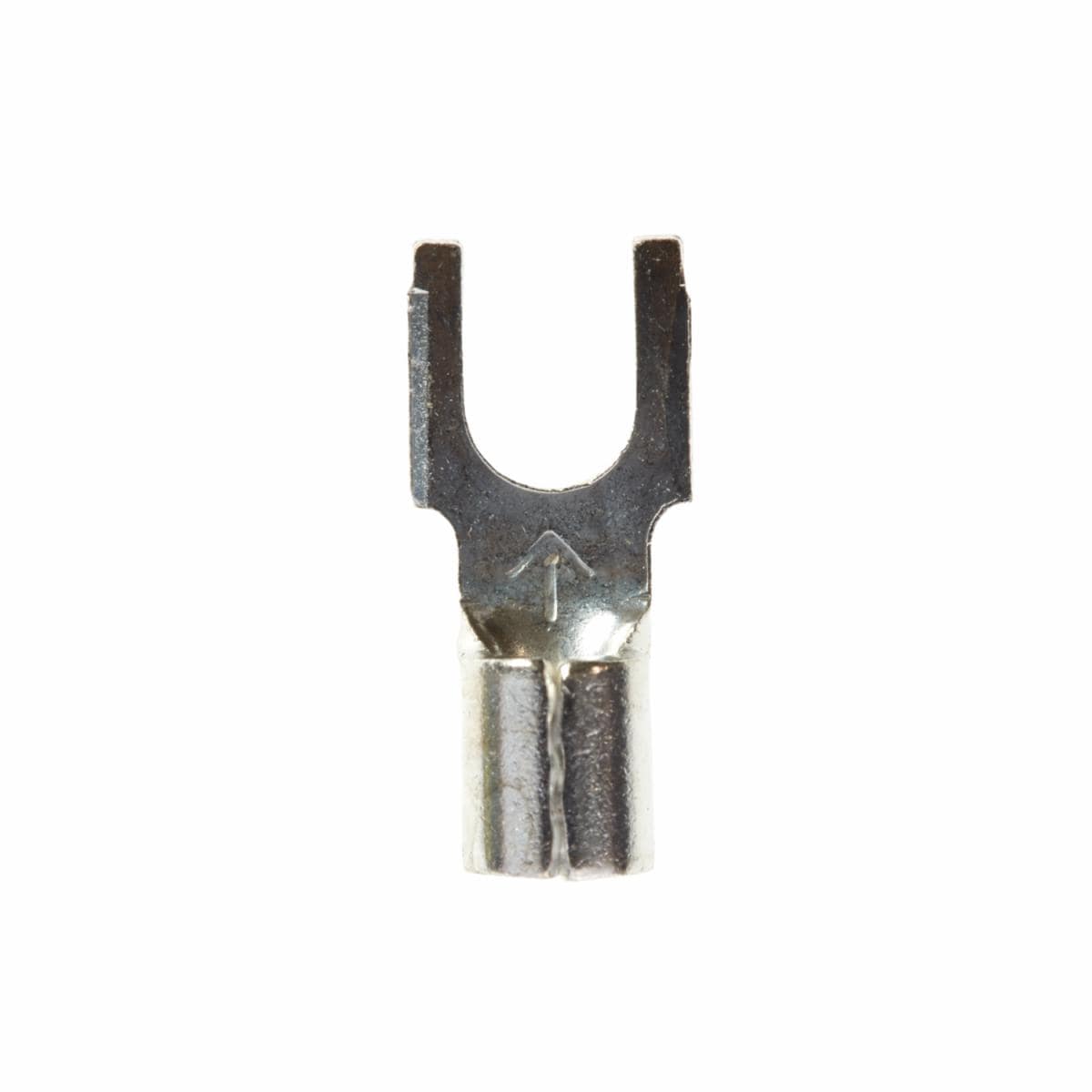

3M™ Scotchlok™ Block Fork MU10-10FBK is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
3M™ Scotchlok™ Block Fork MU10-10FBK has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 1.422 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.135 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Clearance (C) | 0.29 in |
| CSA File Number | LR22190 |
| Fork Type | Block |
| Dimension E | 0.54 in |
| Insulation Material | Non-insulated |
| Make to Order | |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Overall Length | |
| Overall Width | 0.32 in |
| Stud Diameter | 0.19 in |
| Stud Size | #10 |
| Terminal Style | Block |
| Terminal Type | Fork |
