Product Description

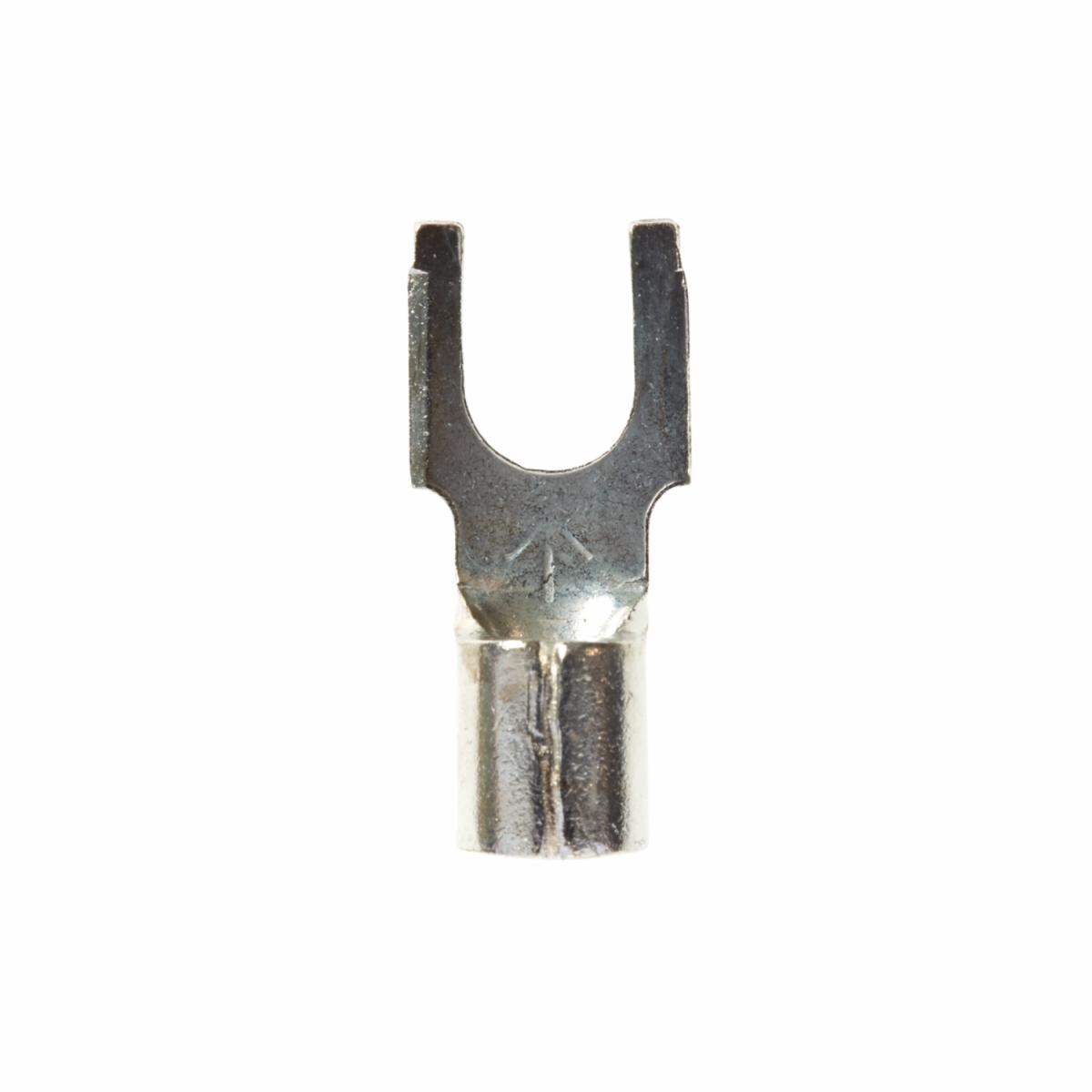

Advantages of 3M™ Scotchlok™ Block Fork M10-10FBX
3M™ Scotchlok™ Block Fork M10-10FBX is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Block Fork M10-10FBX has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 2.308 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.135 in |
| Barrel Style | Brazed |
| Brand | |
| Clearance (C) | 0.29 in |
| CSA File Number | LR22190 |
| Dimension E | 0.54 in |
| Fork Type | Block |
| Insulation Material | Non-insulated |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Overall Length | |
| Overall Width | 0.32 in |
| Stud Diameter | 0.19 in |
| Stud Size | #10 |
| Terminal Style | Block |
| Terminal Type | Fork |
| UL File Number | E23438 |
