Product Description
Advantages of 3M™ Scotchcast™ Electrical Resin 3
- 80 Shore D hardness
- Has 21-minute gel time at 250 °F (121 °C)
- Suitable for impregnating, potting and encapsulating applications such as coils, transformers and modules
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- Elongates 2% longer than its original size for easy insulation or wrapping
- Low-viscosity and fine-wetting properties allow complete impregnation of fine wires in coils

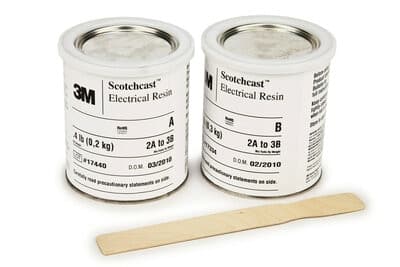

3M™ Scotchcast™ Resin 3 is a 2 part, oven curing, unfilled, rigid, epoxy based, liquid resin. The resin is characterized by an outstanding physical and electrical stability. It is highly resistant to moisture and is suitable for impregnating, potting and encapsulating applications such as coils, transformers, modules and other electrical as well as electronic components.
3M™ Scotchcast™ Resin 3 has low viscosity and fine wetting properties that assure complete impregnation of fine wires in coils. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
Additional information
| Weight | 13.167 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Base Polymer | Epoxy |
| Brand | |
| Color | |
| Cure Method | Oven |
| Cure Temperature | >75 degrees Celsius |
| Dielectric Strength | |
| Elongation | |
| Flammability Rating | Not self extinguishing |
| Flexibility | Rigid |
| Gel Time | 22 min @ 250 °F (121 °C) |
| Hardness | |
| Material | |
| Mix Ratio | |
| Mixed Viscosity | Low (<10,000 cpi) |
| Physical Form | |
| Resin Cure | Oven cure unfilled resins |
| Resin Matrix | Unfilled |
| Shelf Life | |
| Temperature Rating | Class B (<=130 degrees C) |
| Tensile Strength | |
| Thermal Conductivity | Low (<0.25 W/m-K) |
| Type |
