Product Description

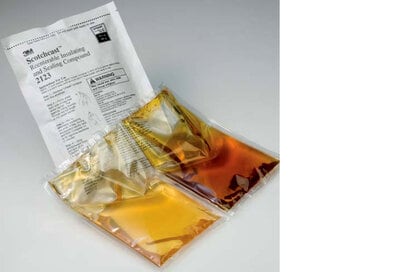

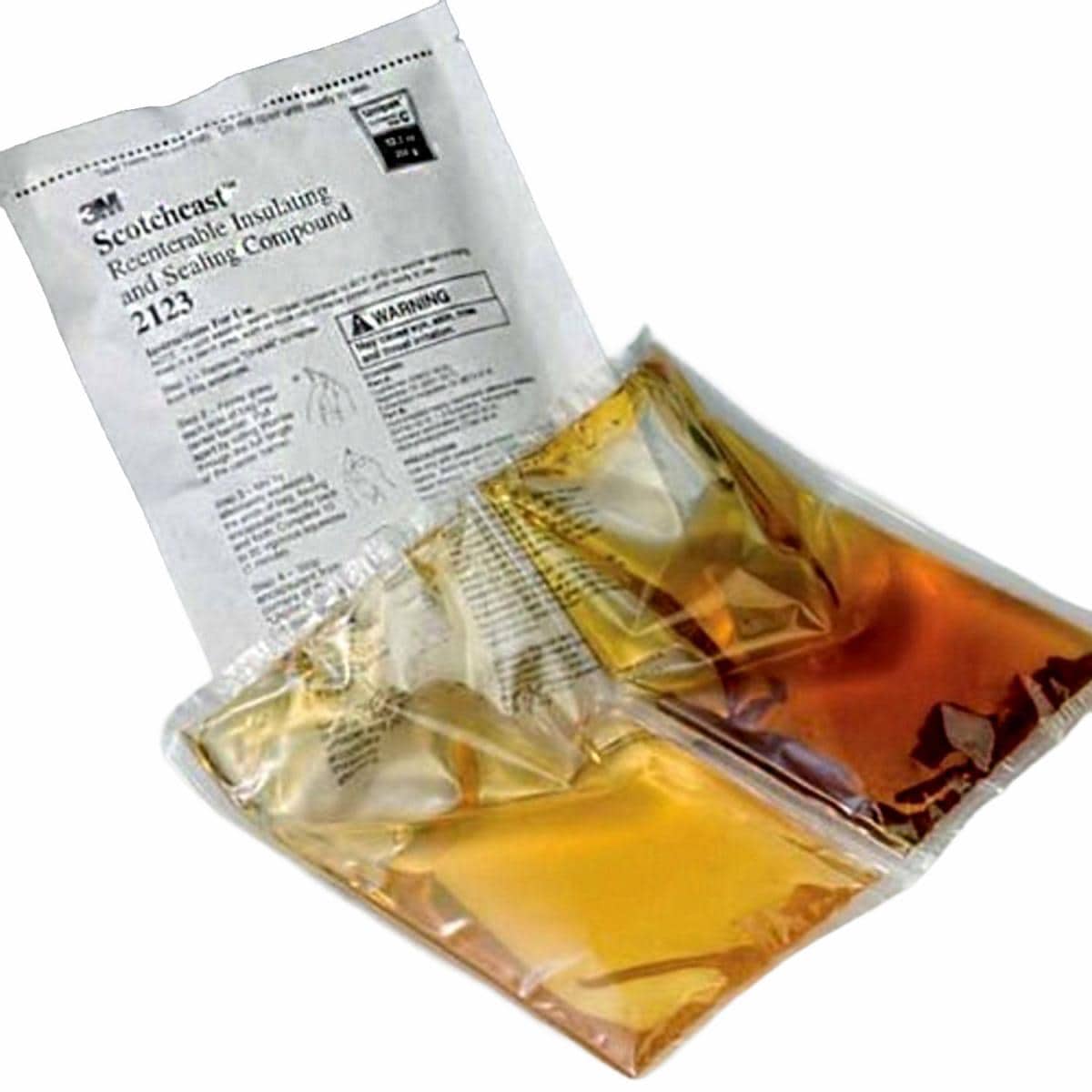

Advantages of 3M™ Scotchcast™ Reenterable Electrical Insulating Resin 2123
- High performance re-enterable resin in bag package for sealing and insulating low voltage cables connections in electrical boxes
- Typical hardness (ASTM D2240) – 0 Shore A
- Has 62 minute gel time at 23 °C (73 °F)
- Useful for sealing and electrical insulation in potting applications
- Withstands a max temperature in continuous use of 90 °C (194 °F)
- Elongates 300% longer than its original size for easy insulation or wrapping
- Rated up to 1 kV
- Excellent wetting properties and low viscosity
- RoHS 2011/65/EU and REACH Compliant
3M™ Scotchcast™ Reenterable Electrical Insulating Resin 2123 is a soft, two-part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re-enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.
3M™ Scotchcast™ Reenterable Electrical Insulating Resin 2123 has good wetting and low viscosity properties. This soft flexible resin ensures curing at room temperature and acts as an insulating material for cable splices operating up to 1 kV. It flows easily, even at low temperatures, while filling the enclosure and minimizing voids. 3M™ Scotchcast™ Reenterable Electrical Insulating Resin 2123 is tested according to ASTM, CENELEC HD 623.S1 (EN50393) standard and is 2011/65/EU (RoHS) as well as 1907/2007/EC (REACH) compliant.
Additional information
| Weight | 10.2 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Applications | Sealing |
| Brand | |
| Cable Accessory Products | Electrical Resin |
| Cure Method | Room |
| Color | |
| Dielectric Strength | |
| Elongation | |
| Flame Retardant | |
| Flexibility | Soft |
| Gel Time | 62 minutes @ 73 degrees F (23 degrees C) |
| Hardness | |
| Material | |
| Maximum Operating Temperature | 90 degrees C (194 degrees F) continuous |
| Minimum Operating Temperature | -20 degrees Celsius |
| Physical Form | |
| Product Series | 2123 |
| Resin Matrix | Unfilled |
| Shelf Life | |
| Temperature Rating | Class B |
| Tensile Strength | |
| Voltage | 1 kV |
| Voltage Application | Low voltage |
| Voltage Rating | 0.6/1 kV |
