Product Description
Advantages of 3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85
- Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
- 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
- Includes comprehensive instruction booklet showing installation techniques for typical splice configurations, in both the horizontal and vertical positions.
- Includes pressure-sensitive adhesive film sealing strip
- RoHS 2011/65/EU Compliant

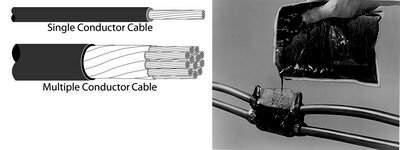

3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85 are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end splice configurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.
3M™ Scotchcast™ Multi Mold Resin Splice Kit 85 includes a flexible film plastic mold, electrical insulating resin 2104, pressure sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H tap or C tap compression connectors, it provides inline, wye, X, butt and dead end splice configurations. This kit has a flexible film plastic mold with a built in porous spacer web for ensuring proper thickness of insulating compound. 3M™ Scotchcast™ Multi Mold Resin Splice Kit 85 is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig ins. RoHS 2011/65/EU Compliant .
Additional information
| Weight | 16.8 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Brand | |
| Cable Type | Power cable |
| Cable Shielding | Non-shielded |
| Conductor Amount | Multiple |
| Conductor Sizes (Imperial) | |
| Conductor Type | Multiple |
| Maximum Cable Outside Diameter | 7/8 inch (run and tap) |
| Maximum Conductor Size | 4/0 AWG |
| Maximum Connector Size (height + width) | 3-1/4 in |
| Type | |
| Shelf Life | |
| Splice Type | |
| Votage | 1 kV |
