Product Description
Advantages of 3M™ Scotchcast™ Inline Splice Kit 72
- Rigid body splice for joining signal and control cables
- Fits unshielded construction of plastic or rubber-jacketed cables
- Designed for inline splicing of underground systems, joining of cable reel ends, direct burial applications and repair of cable failures
- Rated for 1 kV applications
- The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage
- RoHS 2011/65/EU Compliant

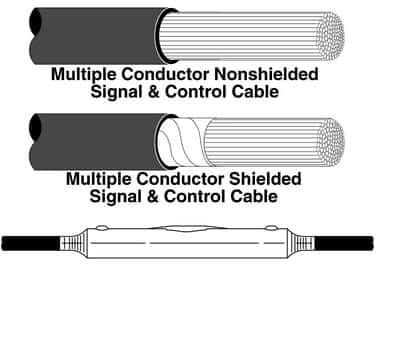

3M™ Scotchcast™ Inline Splice Kit 72 is a 1 kV rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber jacketed cables. 3M™ Scotchcast™ Inline Splice Kit 72 is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig ins.
3M™ Scotchcast™ Inline Splice Kit 72 helps in sealing collars or splice body ends, and the jumper wire with clips offers solderless shield continuity on shielded cables. RoHS 2011/65/EU Compliant.
Additional information
| Weight | 26.4 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Brand | |
| Cable Shielding | Shielded |
| Cable Type | Non-shielded |
| Conductor Sizes (Imperial) | |
| Insulation O.D. Range | 0.625 – 1.50 inch |
| Maximum Conductor Size | 10 AWG |
| Maximum Insulation Outer Diameter | 1.5 in |
| Minimum Conductor Size | 22 AWG |
| Minimum Insulation Outer Diameter | 0.625 in |
| Molded Body Length | 15.534 in |
| Type | |
| Shelf Life | |
| Splice Type | |
| Voltage | 1 kV |
