Product Description

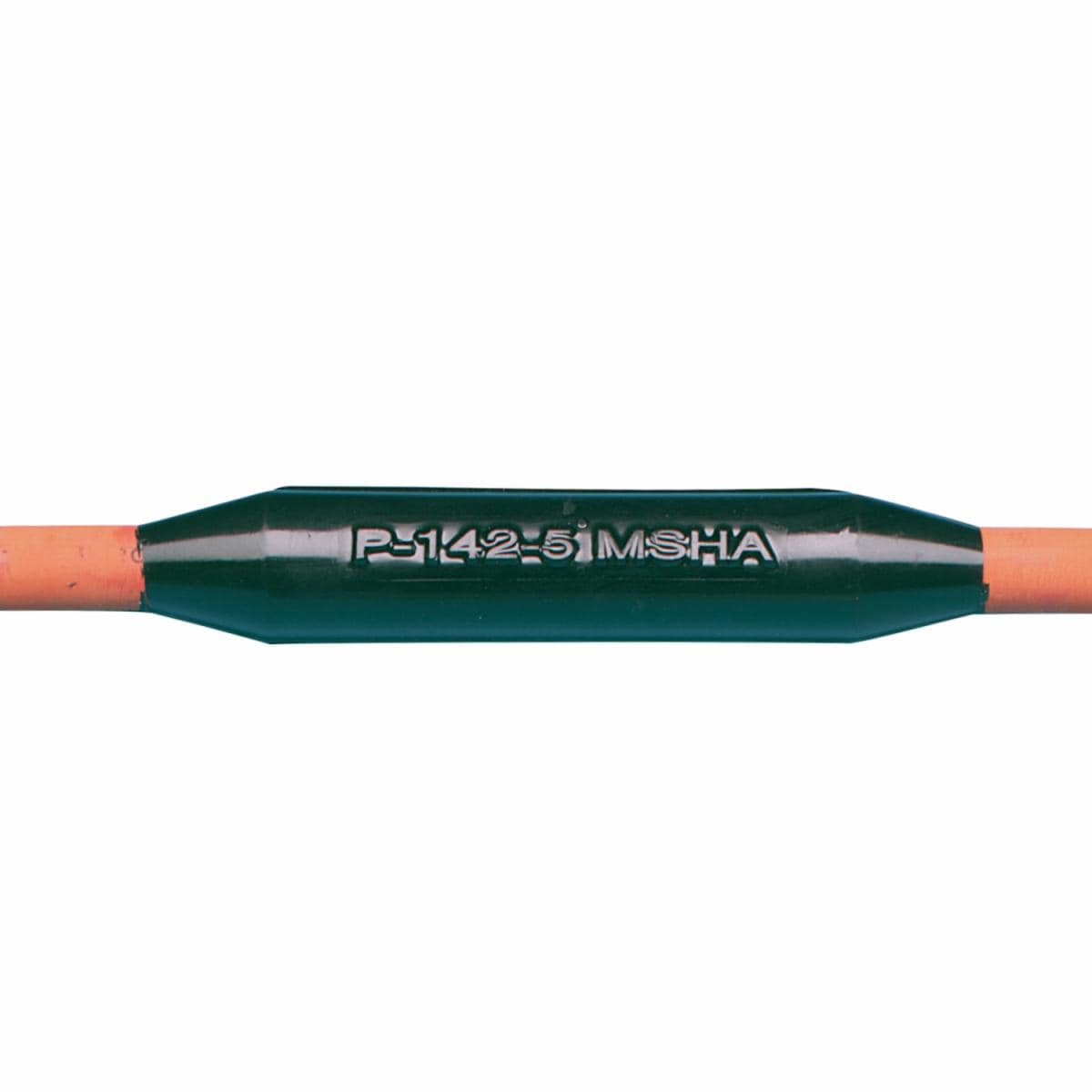

Advantages of 3M™ Scotchcast™ Flexible Splice 82-F1 2131
- The self-curing resin forms a splice or repair that resists abrasion
- Designed to splice or re-jacket non-shielded portable power cable and portable cord
- Suitable for use with compression inline connectors
- 1 kV-rated for multi-conductor and 5 kV-rated for single-conductor cable applications
- MSHA Approved and RoHS 2011/65/EU Compliant
- MSHA Approved and RoHS 2011/65/EU Compliant
3M™ Scotchcast™ Flexible Splice 82-F1 2131 is designed for inline splicing on non shielded portable power cables and cords. The wet/dry flexible power cable splice kit is suitable for use on single and multi conductor cables, depending on the voltage rating.
3M™ Scotchcast™ Flexible Splice 82-F1 2131 includes Scotch® rubber splicing tape 23, Scotchcast™ compound 2131 and Three M Ite™ Elek Tro Cut™ abrasive cloth 80J grit. The semi flexible compound offers permanent splicing to bend with the cable for easy installation, reeling and handling. The smooth, tapered splice prevents cable hang ups and splice end lifting. The flame retardant compound 2131 is a self curing resin that bonds to itself and modern cable jackets. This kit is perfect for splicing 1 kV rated multiple conductors and 5 kV rated single conductors. RoHS 2011/65/EU Compliant and MSHA Approved.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 11.8 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Brand | |
| Cable Accessory Products | Electrical resins |
| Cable Shielding | Non-shielded |
| Cable Type | Multi-core |
| Color | |
| Conductor Amount | Single |
| Conductor Sizes (Imperial) | |
| Connection Max Outside Diameter | Single Conductor – 0.62 inch |
| Dielectric Strength | |
| Flame Retardant | Resin only |
| Gel Time | 17 min 73 °F (23 °C) |
| Insulation Outside Diameter Range | 0.25 – 0.8 inch |
| Maximum Conductor Size | 6 AWG |
| Maximum Insulation Outer Diameter | 0.8 in |
| Maximum Operating Voltage | 5 kilowat |
| Minimum Conductor Size | 10 AWG |
| Minimum Insulation Outer Diameter | 0.25 in |
| Mining Sector Approval | Yes |
| Number of Conductors | 3 |
| Product Series | 82-B Series |
| Resin Type | SC 2131 |
| Splice Type | |
| Type | |
| Voltage | 5 kV (single) |
| Voltage Rating | 0.6/1 kV |
| With Screw Connectors | No |
